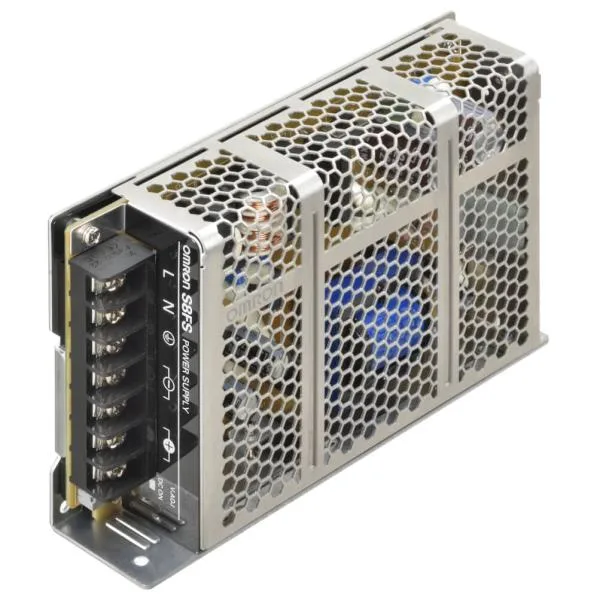

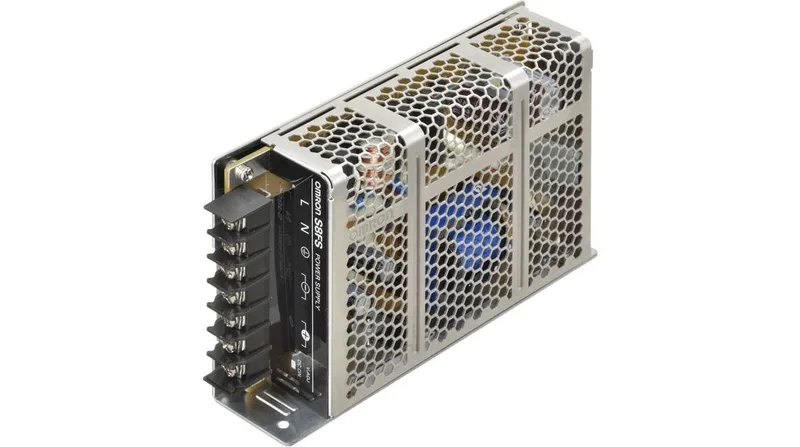

Omron S8FSC10024J
MPNS8FSC10024J
DIN Rail Switch Mode Power Supply 85% 24V 4.5A 100W Adjustable S8FS-C
$26.04 – $49.20Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | S8FS-C |
| Output signal | Adjustable |
| Termination type | Screw Terminal Block |
| Output voltage 1 | 24 V |
| Input voltage max. | 240 V |
| Input voltage min. | 100 V |
| Insulation voltage | 3 kV |
| Input voltage nominal | 100 ... 120 VAC;200 ... 240 VAC |
| Output voltage nominal 1 | 24 V |
| Output current 1 | 4.5 A |
| Rated power | 100 W |
| Operating temperature max. | 60 °C |
All specifications+8 ▾
| Parameter | Value |
|---|---|
| Operating temperature min. | -20 °C |
| Depth | 171 mm |
| Width | 38 mm |
| Height | 97 mm |
| MTBF | 135000 h |
| Outputs | 1 |
| Efficiency | 85 % |
| Ripple & noise | 120 mV |
MPN
S8FSC10024J
