Omron S8FSC20024

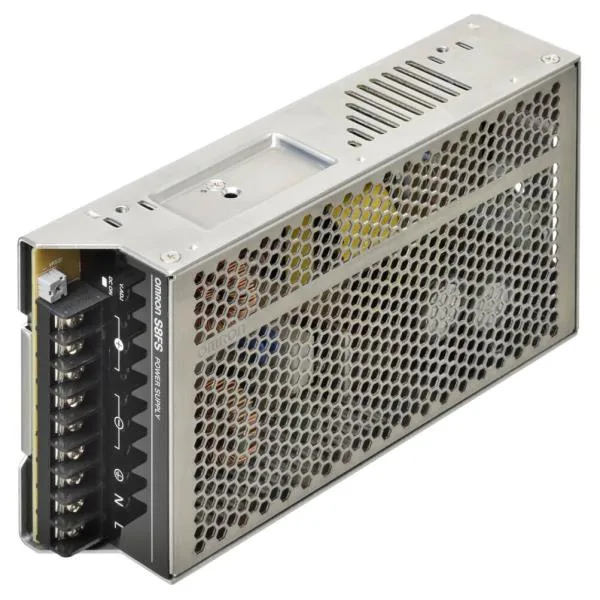

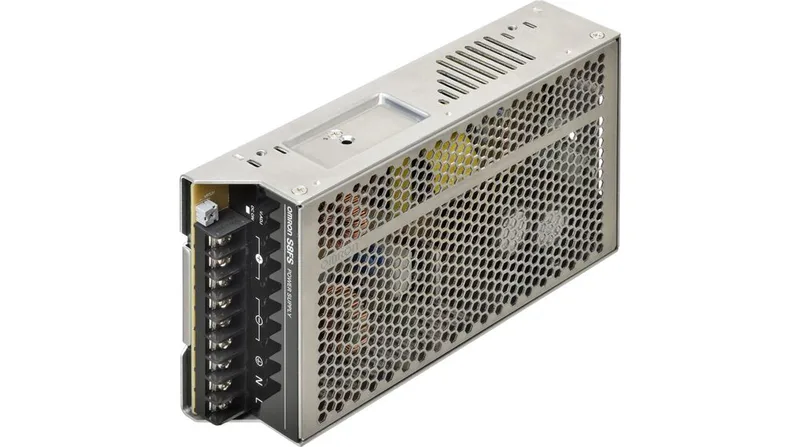

Omron S8FSC20024 DIN Rail Power Supply, 200W 24V 8.8A

MPN S8FSC20024

Omron S8FS-C series, DIN Rail Switch Mode Power Supply, 200 W, 24 VDC output, 8.8 A, 88% efficiency, screw terminal block.

$50.29 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S8FSC20024 specifications
ParameterValue
SeriesS8FS-C
Output signalAdjustable
Insulation voltage ui3 kV
Power200 W
Depth50 mm
Width112.5 mm
Height212 mm
Efficiency88%
Ripple noise110 mV

Product details

The Omron S8FSC20024 is a 200 W DIN-rail switch-mode power supply from the S8FS-C series, delivering 24 VDC at 8.8 A. It's built for control cabinets where you need a clean, regulated DC bus for PLCs, sensors, relays, and small motors — the kind of gear that keeps a line running. The 88% efficiency means less heat dumped into the enclosure, so you can pack it tighter without cooking adjacent components.

Screw terminal block connections — no special tools needed, and the wireman on the floor can land 12 AWG without cussing. The 3 kV insulation voltage gives you a decent safety margin between primary and secondary, which matters when you're feeding a 24 VDC safety circuit that shares a panel with 480 VAC motor starters.

Reliability and thermal considerations

MTBF is listed at 135,000 hours — call it about 15 years of continuous run time, which is solid for a DIN-rail supply in an industrial environment. The operating range is -20°C to 50°C, so it'll start on a cold morning in an unheated plant and keep going through a hot summer afternoon.

Physical fit in the cabinet

Measures 212 mm tall, 112.5 mm wide, and 50 mm deep — that's a compact footprint for 200 W. The depth is shallow enough that it won't force you into a deeper enclosure than you planned.
