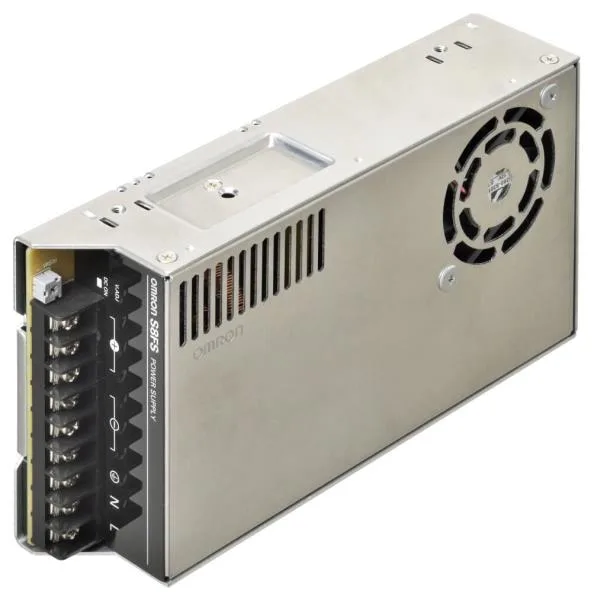

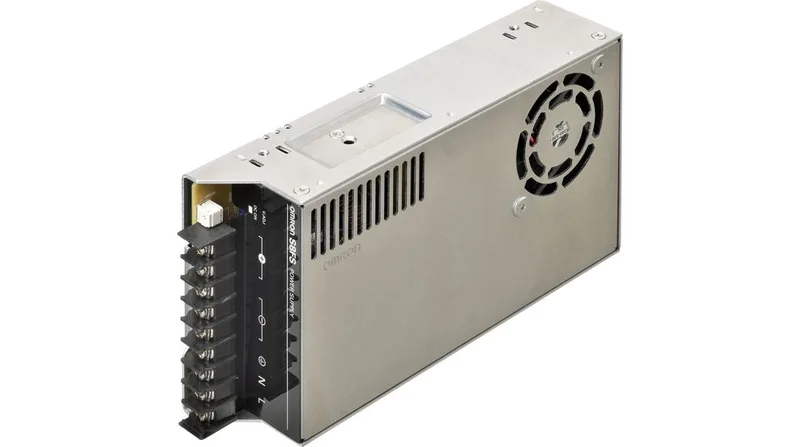

The Omron S8FSC35024J is a DIN-rail switch-mode power supply from the S8FS-C series, delivering 350 W at 24 V DC with a continuous output current of 14.6 A. The 86% efficiency figure is typical for this power class and means the unit dissipates about 56 W as heat at full load — something to account for in enclosure thermal calculations. Input is rated for dual-range AC: 100–120 VAC or 200–240 VAC, auto-selecting. That covers standard single-phase line voltages across most industrial regions without a manual tap change. The output is adjustable, so you can trim it a few percent above 24 V to compensate for voltage drop along a long DC bus. Ripple and noise is specified at 120 mV — acceptable for powering general-purpose 24 V DC loads like contactors, relays, sensors, and small PLCs. For sensitive analog or measurement circuits, you may want a downstream filter or a dedicated linear supply.
Housing dimensions are 50 mm wide, 112.5 mm tall, and 224 mm deep — a standard 2-module-wide DIN-rail footprint. The 224 mm depth is deeper than some compact supplies; check clearance inside your enclosure before committing the panel layout. Termination is via screw terminal block — field-wiring friendly for most panel builders, though slower than spring-cage if you're doing high-volume assembly. Rated insulation voltage is 3 kV between input and output, which is the standard reinforced isolation level for a SELV power supply. Derate above 50 °C is typical for this class — the datasheet curve will tell you how much current to back off at 60 °C.
The S8FS-C series has been a workhorse in Omron's industrial power lineup. The S8FSC35024J is the 350 W, 24 V, single-output variant with screw terminals. If your panel uses spring-cage connectors, check the S8FS-C family for the spring-clamp version — same electrical specs, different termination. MTBF is listed at 135,000 hours — about 15.4 years continuous operation at 40 °C ambient. That is a solid figure for a DIN-rail supply and indicates the electrolytic capacitors and switching stage are spec'd for long service life in a controlled environment.
