Omron S8FSG15024CD

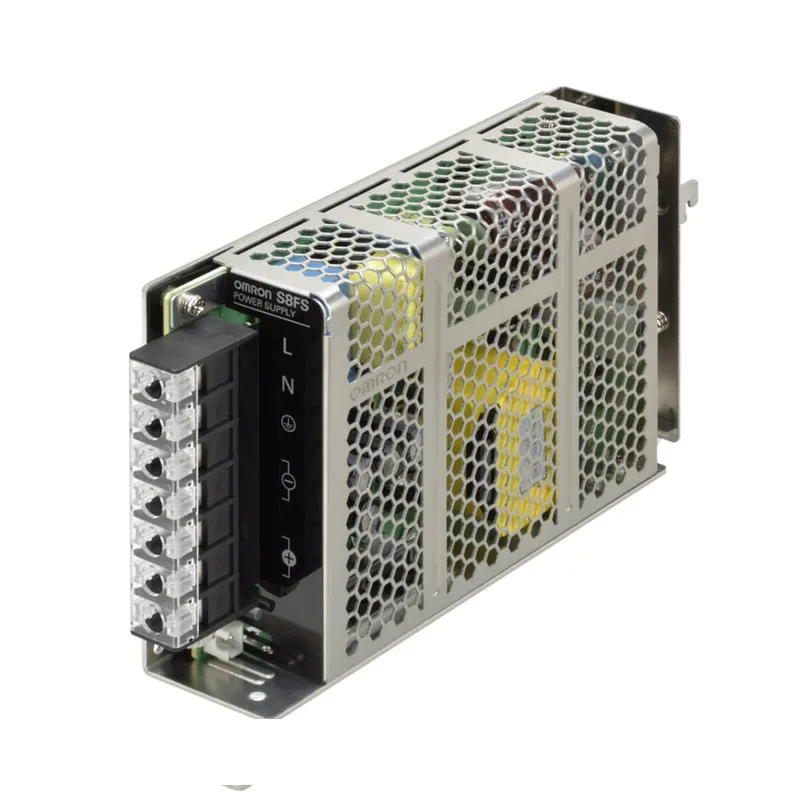

Omron S8FSG15024CD DIN Rail Power Supply, 150W 24VDC 6.5A

MPN S8FSG15024CD

Omron S8FS-G series, S8FSG15024CD, DIN Rail switching power supply, Single Phase, 150 W output, 24 V DC at 6.5 A.

$68.58 – $130.56 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S8FSG15024CD specifications
ParameterValue
SeriesS8FS- G
Input voltage100 to 240 V AC
Output current6.5 A
MountingDIN Rail
Housing materialAluminum, Stainless Steel

Product details

The Omron S8FSG15024CD is a 150 W DIN-rail switching power supply delivering 24 V DC at 6.5 A from a single-phase 100-240 V AC input. The 90% efficiency at 230 V AC keeps heat dissipation low in a crowded enclosure.

Rated 150 W continuous at 6.5 A output, 24 V DC nominal — enough to power a small control cabinet's 24 VDC loads: a handful of contactors, a compact PLC, and a few sensors. The single-phase input accepts 100-240 V AC at 47-450 Hz, which covers standard mains (50/60 Hz) and higher-frequency supplies found in some industrial settings. Inrush current is limited to 28 A, so it won't nuisance-trip a B-curve MCB on power-up. Hold-up time is a minimum of 10 msec (55 msec typical) at full load — enough to ride through a half-cycle dropout and keep a PLC from cycling its outputs. Output noise is spec'd at 110 mV max, which is within tolerance for most digital I/O and analog inputs; if you're feeding a sensitive measurement chain, add a small output filter cap at the load. Built-in protections include overload, overvoltage, and automatic reset — meaning it recovers from a temporary overload without a manual reset, which saves a truck roll on a remote panel. The green LED gives a quick visual confirmation the rail is alive.

MPN
S8FSG15024CD
