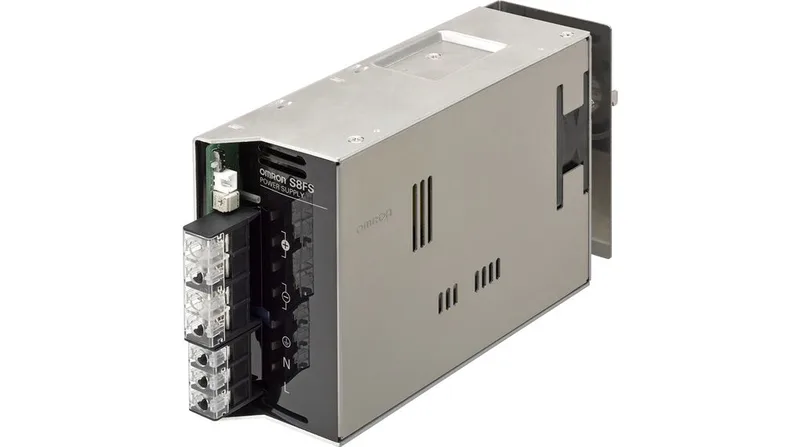

The Omron S8FSG60012CD is a 600 W DIN rail power supply from the S8FS-G series, delivering 12 VDC at 50 A with an adjustable output range. Efficiency sits at 88 %, which keeps thermal dissipation manageable inside a crowded panel — at full load you're shedding about 72 W of heat, so plan ventilation accordingly. The input accepts 85 to 264 VAC, covering single-phase mains globally without a tap change.
The 50 A continuous output at 12 V is the headline number — that's enough to power a bank of 24 VDC converters in series, or a string of 12 VDC actuators and controllers. The adjustable output (typically ±10 % on this class) lets you compensate for voltage drop on a long DC run. Ripple and noise is rated at 170 mV, which is standard for an industrial switched-mode supply; sensitive analog front-ends may need a post-filter. The 3 kV insulation voltage between input and output gives you isolation headroom for grounded or floating DC systems.
Mechanical fit
The housing is 67.5 mm wide, 125 mm tall, and 242 mm deep — that depth is the dimension to watch when selecting an enclosure; it needs about 260 mm of clear depth to allow for wiring and bend radius at the screw terminals. Screw terminals are standard, so no special tooling needed for field wiring.
