Omron S8FSG60015CD

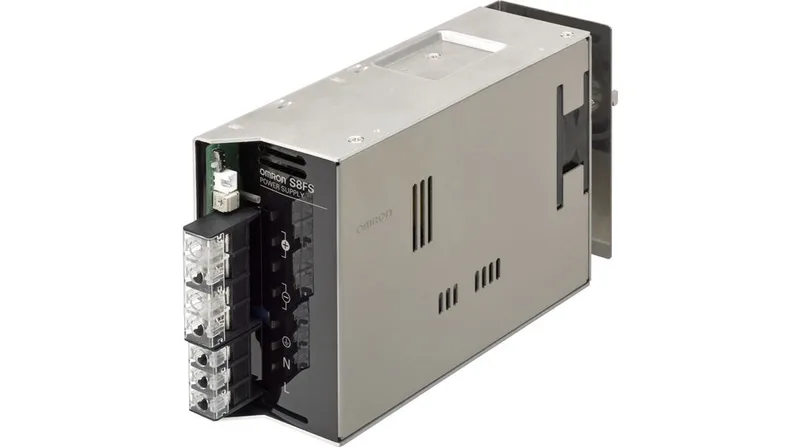

Omron S8FSG60015CD Power Supply 600W 15V 40A Adjustable, 84%

MPN S8FSG60015CD

Omron S8FS-G series, 600 W adjustable power supply, 15 VDC output at 40 A, 84% efficiency, screw terminal block, MTBF 135000 h.

$510.60 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S8FSG60015CD specifications
ParameterValue
SeriesS8FS- G
Output signalAdjustable
Insulation voltage ui3 kV
Power600 W
Depth242.1 mm
Width62.5 mm
Height120 mm
Efficiency84%
Ripple noise170 mV

Product details

The Omron S8FSG60015CD is a 600 W single-output power supply from the S8FS-G series, delivering 15 VDC at 40 A. Efficiency sits at 84 %, and the output is adjustable via a trim pot on the front face. Ripple and noise are specified at 170 mV, which is typical for a 600 W switcher in this class. The unit holds regulation across a 100 to 240 VAC input range, single-phase. Insulation voltage is rated at 3 kV between input and output. Operating temperature spans -20 to 70 °C, and the MTBF is listed at 135000 hours — roughly 15 years of continuous run at 40 °C ambient. That figure is calculated per the manufacturer's standard, so it's a reliability benchmark for BOM life planning.

Sourcing is straightforward through the standard Omron distribution channel. The S8FS-G series has broad installed base, so replacement units are generally available. We can quote to your required quantity against an RFQ — lead time and pricing depend on volume and current factory backlog.

Dimensions are 120 mm high, 62.5 mm wide, and 242.1 mm deep — a standard 1.5-inch-wide DIN-rail footprint. The screw terminals are clearly marked; connect L/N/PE on the input side, V+/V− on the output. The adjustment pot is accessible with a small flathead screwdriver through a hole in the front cover. For a 600 W unit, expect to derate output current above 50 °C — the datasheet derating curve (not reproduced here) typically reduces to about 80 % at 60 °C.

MPN
S8FSG60015CD
