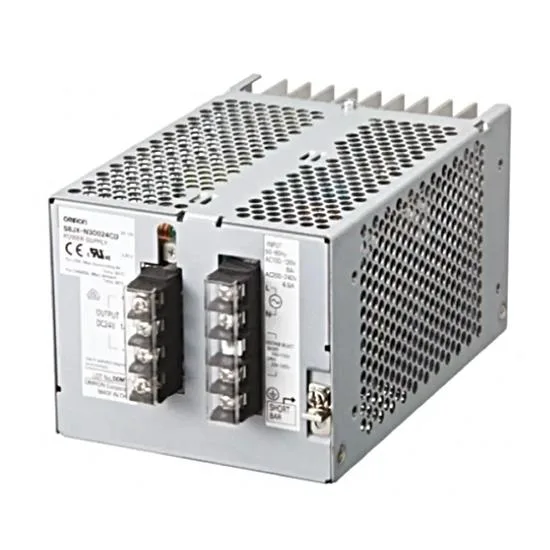

The Omron S8JX-G30024C is a 300 W single-output power supply from the S8JX-G Series, delivering 24 V at 14 A. The output is configurable as either adjustable or fixed, giving the panel builder flexibility to fine-tune the voltage for the load or lock it down for a fixed-bus application.
Input and output range
It accepts a wide AC input from 85 V to 264 V, covering single-phase mains globally without a voltage-selector switch. The 14 A continuous rating at 24 V means it can power a mix of 24 VDC loads — contactors, sensors, PLC cards — up to the 300 W ceiling. The single-output design keeps wiring simple: one load circuit per supply.
