Omron S8JX-G30024CD — DIN Rail Power Supplies

S8JX-G30024CD Omron Switch Mode Power Supply, 300W 24V DIN R

MPNS8JX-G30024CD

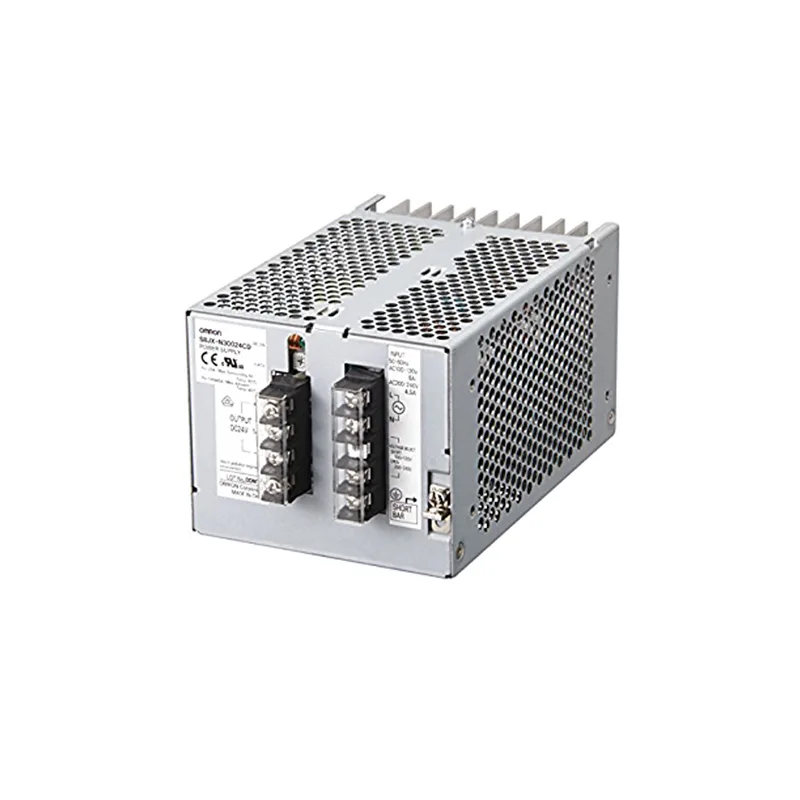

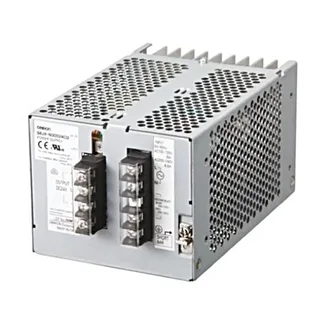

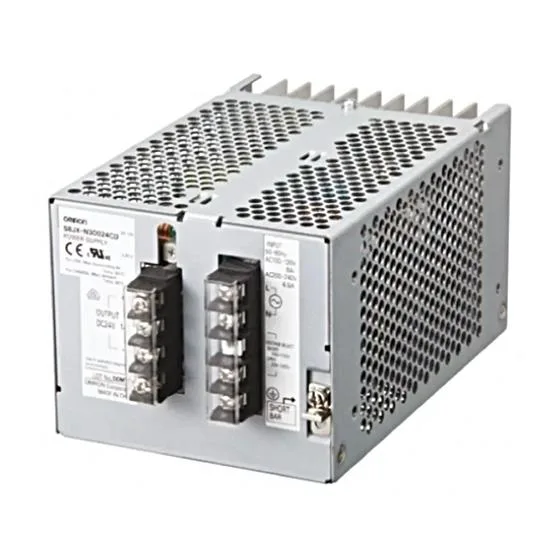

Omron S8JX-G30024CD Switch Mode Power Supply, 300W, 24 VDC output, DIN-rail mount, covered configuration.

$420.00 – $439.98Ref. price · indicative, final on quote
Omron S8JX-G30024CD datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

S8JX-G30024CD — Specifications
ParameterValue
Weight0.25 Kg
Product typeSwitch Mode Power Supply S8JX
Power ratings300
Output voltage24 = 24 V
Configuration (mounting)D = DIN Rail-mounting
Configuration (15/35/50/100/150 w model)C = Covered

Product details

The Omron S8JX-G30024CD is a 300 W switch-mode power supply delivering a regulated 24 VDC output. It's a DIN-rail-mount unit with a covered terminal block, meaning it snaps into the panel and the cover keeps fingers off the live bus — good for a machine builder who wants IP2X at the terminals without an extra guard.

The closest sibling in the Omron power supply family is the S8VS-48024, which steps up to 480 W output. That one uses a screw terminal block and includes a sinking/sourcing alarm output — useful if you need remote status monitoring. The S8JX-G30024CD lacks that alarm output, so if your panel calls for a 'power fail' signal back to the PLC, the S8VS is the one to grab. Otherwise, for a straight 24 VDC bus at 300 W, the S8JX is a clean fit.

Frequently asked questions

What's the closest functional second-source — the S8VS-48024?

The S8VS-48024 is a higher-power sibling at 480 W with a screw terminal block and a sinking/sourcing alarm output. The S8JX-G30024CD lacks that alarm, so if you need remote power-fail indication, the S8VS is the better fit. For a straight 24 VDC bus at 300 W, the S8JX is a direct drop-in.

Will the S8JX-G30024CD drop into a panel specified around the S8VS-48024 without rewiring?

Both mount on standard 35 mm DIN rail and output 24 VDC, but the S8VS-48024 uses screw terminals while the S8JX uses covered spring-clamp terminals. The wiring pattern is the same (L/N/PE in, V+/V- out), so you can swap without rewiring the load side — just match the terminal type to your existing connectors.

MPN
S8JX-G30024CD
