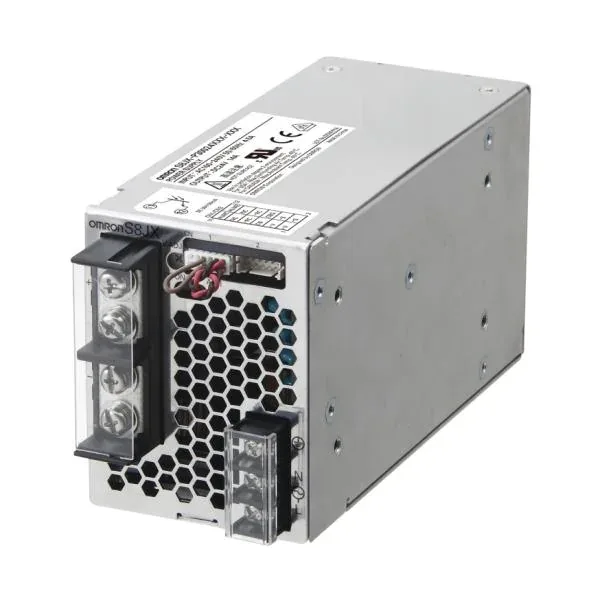

Omron S8JX-P30024CD Switch Mode Power Supply, 300W, 24VDC output at 14A, input 85-264 VAC, DIN Rail mount.
| Parameter | Value |
|---|---|
| Power | 300W |
| Weight | 0.25 Kg |
| Product type | Switch Mode Power Supply |
| Input voltage | 85 ~ 264 VAC |
| Mounting | DIN Rail mount |
| Output current | 14A |
| Output voltage | 24V |
| Dimensions (LxWxH) | 24.9cm x 7.76cm x 12.3cm |
The Omron S8JX-P30024CD is a 300W switch-mode power supply that puts out 24VDC at 14A continuous. That's enough to run a small bank of 24V relays, a compact PLC rack, or a handful of sensors on a pick-and-place cell. Input range is wide — 85 to 264 VAC — so it handles both 120V and 240V line feeds without a jumper change. That's one less thing to verify during panel build.
300W power output, 24VDC at 14A, input range 85-264 VAC, DIN rail mount.
The S8VS-48024 is a higher-power sibling at 480W with screw terminals and an alarm output, while the S8JX-P30024CD is 300W. Both are 24VDC output and DIN rail mount, but the S8VS-48024 is physically larger and heavier (1.48 kg vs 0.25 kg unit weight). They are not direct drop-in replacements due to power and terminal differences.
