The Omron S8M-CP04 is a DIN-rail mounted multicircuit protector from the S8M series. It combines overcurrent, overtemperature, overvoltage, and undervoltage protection in a single unit, powered by a 24VDC supply. The trip range of 0.5mA ~ 4A means it can protect sensitive control circuits drawing as little as half a milliamp, all the way up to a 4A load. The voltage trip window of 18.0 ~ 28.8VDC means it will drop the load if the supply sags below 18V or rises above 28.8V — useful for catching a failing power supply before it cooks the downstream electronics.

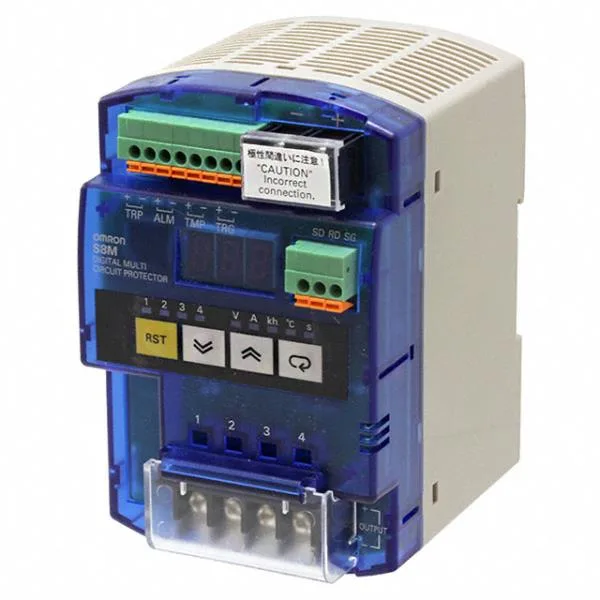

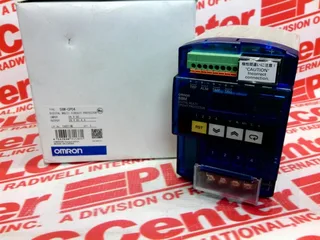

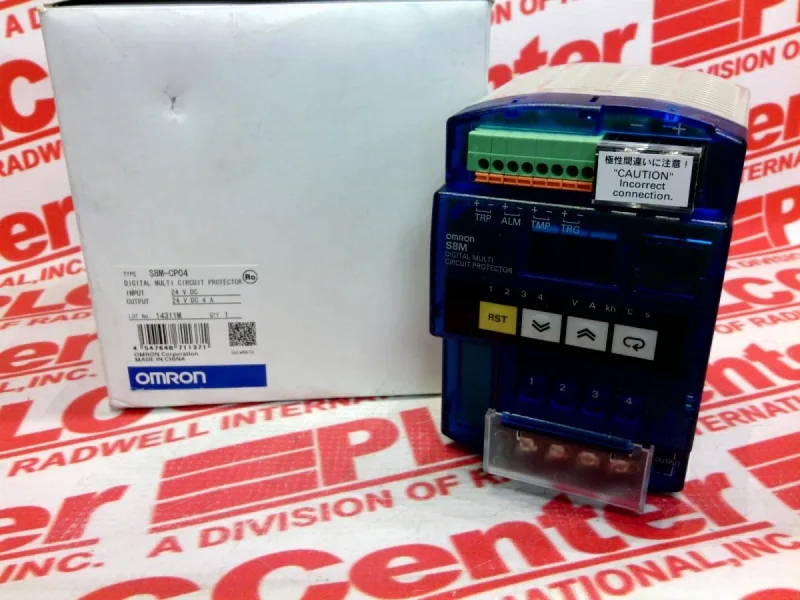

Omron S8M-CP04 Multicircuit Protector, 0.5mA-4A, 24VDC
MPNS8M-CP04
Active
Omron S8M series, PWR MULTICIRCUIT PROTECT, S8M-CP04, DIN Rail, 24VDC supply, trip range 0.5mA ~ 4A / 18.0 ~ 28.8VDC.
$210.69 – $404.37Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Function | Overcurrent, Overtemperature, Overvoltage, Undervoltage |
| Parameter | Value |
|---|---|
| Series | S8M |
| Trip range | 0.5mA ~ 4A, 18.0 ~ 28.8VDC |
| Mounting | DIN Rail |
| Supply voltage | 24VDC |
| Termination style | Screw Terminal |
| Operating temperature | -10°C~60°C |
Product details
Frequently asked questions
What protection functions does the S8M-CP04 provide?
It provides overcurrent, overtemperature, overvoltage, and undervoltage protection in a single DIN-rail package.
What supply voltage does the S8M-CP04 require?
It requires a 24VDC supply voltage.
