Omron S8VK-C06024

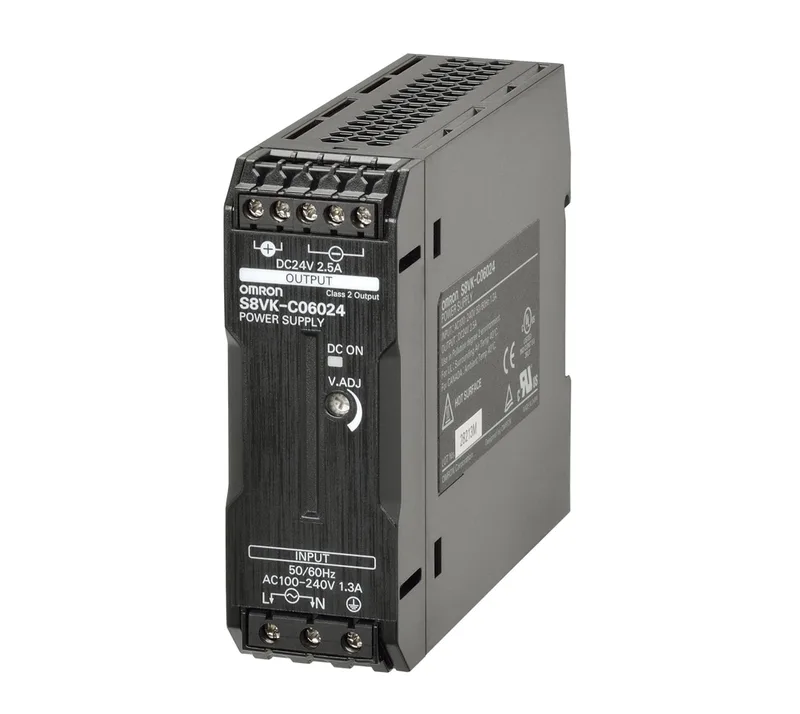

Omron S8VK-C06024 60W 24VDC 2.5A Single-Phase Power Supply

MPN S8VK-C06024

Omron S8VK-C series, Switch Mode Power Supply, S8VK-C06024, 60 W, 24 V DC output at 2.5 A, single-phase 100-240 VAC input, screw terminals, IP20.

$21.21 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S8VK-C06024 key specifications
ParameterValue
SeriesS8VK-C
Output signalAdjustable
Product typeSwitch Mode Power Supply
Terminal typeScrew Terminal
Input voltage240 V
Insulation voltage ui3000 V
Current32 A
Output current2.5 A
Output power60 W
Frequency450 Hz
IP ratingIP20
Temp storage max65 °C

All specifications

S8VK-C06024 additional specifications
ParameterValue
Temp storage min25 °C
Temp operating max60 °C
Temp operating min25 °C
Humidity max20%
Depth109.982 mm
Width32.004 mm
Height94.742 mm
Mtbf hours630000 h
Efficiency88%
I/O channels1
Ripple noise0.07 V

Product details

The Omron S8VK-C06024 is a 60 W single-phase switch-mode power supply that takes 100-240 VAC input and delivers a regulated 24 VDC output at up to 2.5 A. This is the current-production S8VK-C series unit. Output voltage is adjustable, and the supply includes overload and overvoltage protection plus support for series operation. Ripple and noise are held to 0.07 V — clean enough for most 24 VDC control loads like PLCs, relays, and sensors. Efficiency hits 88% at full load, and the MTBF is rated at 630,000 hours. The hold-up time is 24 ms minimum at full load (117 ms under lighter load), which keeps the DC bus up through brief line dips.

This supply mounts on a standard DIN rail and measures 32 mm wide, 94.742 mm tall, and 109.982 mm deep — fits a single module slot in a crowded panel. Screw terminals accept 22 to 12 AWG wire. The green DC OK indicator on the front panel gives a quick visual check during commissioning. Operating temperature range is -13°F to 140°F (-25°C to 60°C), and storage range is -25°C to 65°C. The 20% humidity rating suggests it's fine in normal indoor industrial environments.
