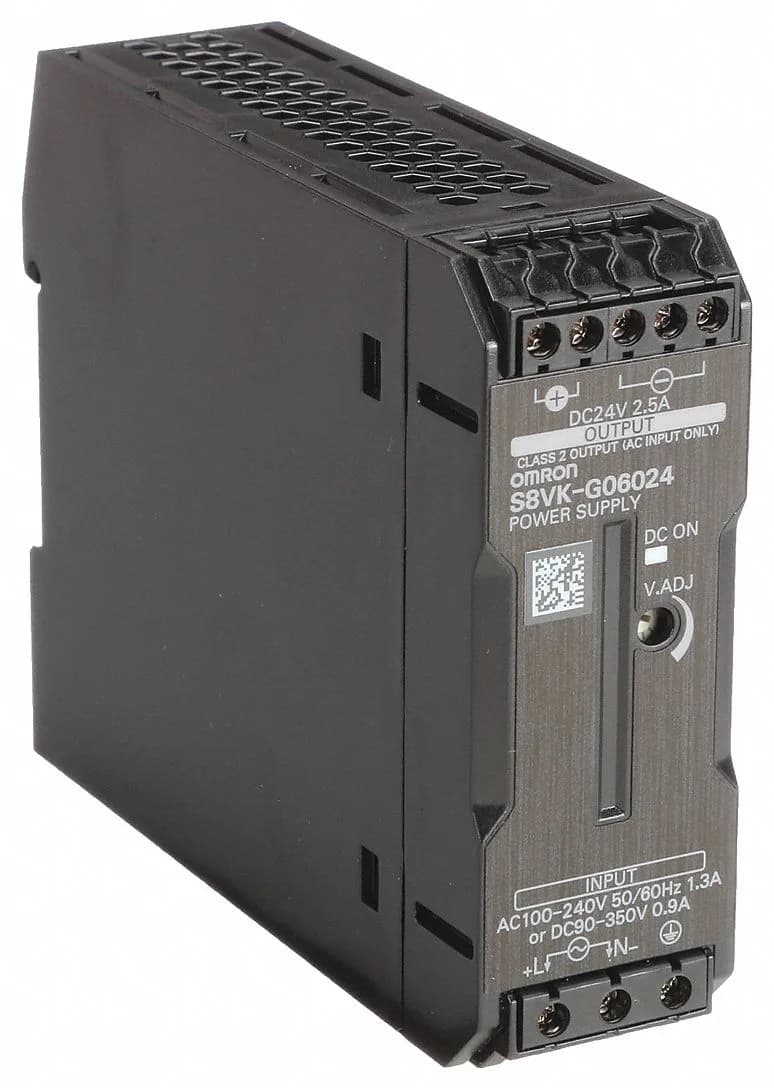

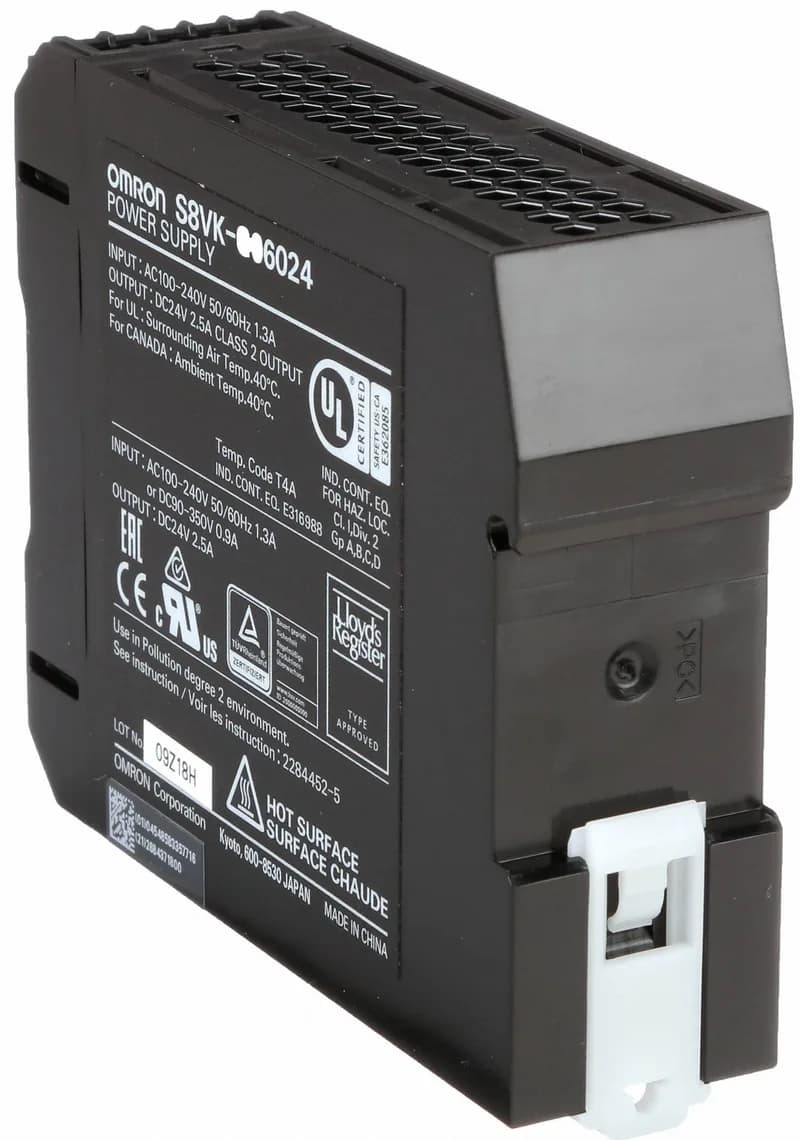

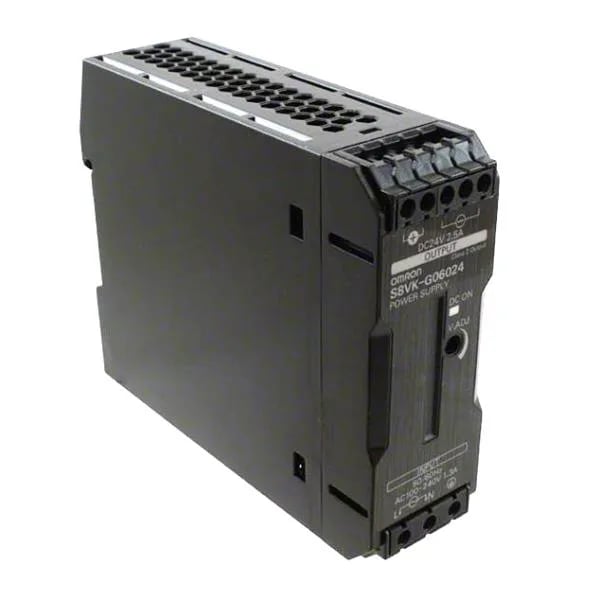

Omron S8VK-G06024
MPNS8VK-G06024
OMRON S8VK-G06024|OMRON S8VK-G06024
$48.26 – $134.10Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Series | S8VK-G |
| Wire connection type | Screw Terminals |
| Input voltage | 100 to 240V AC |
| Output voltage - nominal | 24 V DC |
| Current - peak | 3 A |
| Current - inrush | 32 A |
| Output current | 2.5 A |
| Power supply style | Switching |
| Output power - rated | 60 W |
| Input frequency - minimum | 47 Hz |
| Input frequency - nominal | 50/60 Hz |
| Input frequency - maximuim | 450 Hz |
All specifications
| Parameter | Value |
|---|---|
| Phases | Single |
| IP rating | IP20 |
| Mounting | DIN Rail |
| Wire size - maximum | 12 AWG |
| Wire size - minimum | 22 AWG |
| Operating temperature - maximum | 158 °F |
| Operating temperature - minimum | -40 °F |
| Overall depth | 4.33 in |
| Overall width | 1.26 in |
| Overall height | 3.54 in |
| Housing material | Metal |
| Mean time between failures | 135,000 hr |
| Standards | CE; CSA C22.2 No. 107.1/62368-1; cULus; cURus; EN50178; EN61558-2-16; EN62368-1; Lloyd’s Standards EN60204-1 PELV; UL 508/62368-1 |
| Brand | OMRON |
| Special features | Automatic Reset; LED Diagnostic Indicators; Overload Protection; Overvoltage Protection; Parallel Capability; Series Operation |
| Status indicator | Green LED |
| Hold up time - minimum | 25 msec; 129 msec |
| Output noise - maximum | 50 mV |
| Start up time - maximum | 790 msec |
MPN
S8VK-G06024
