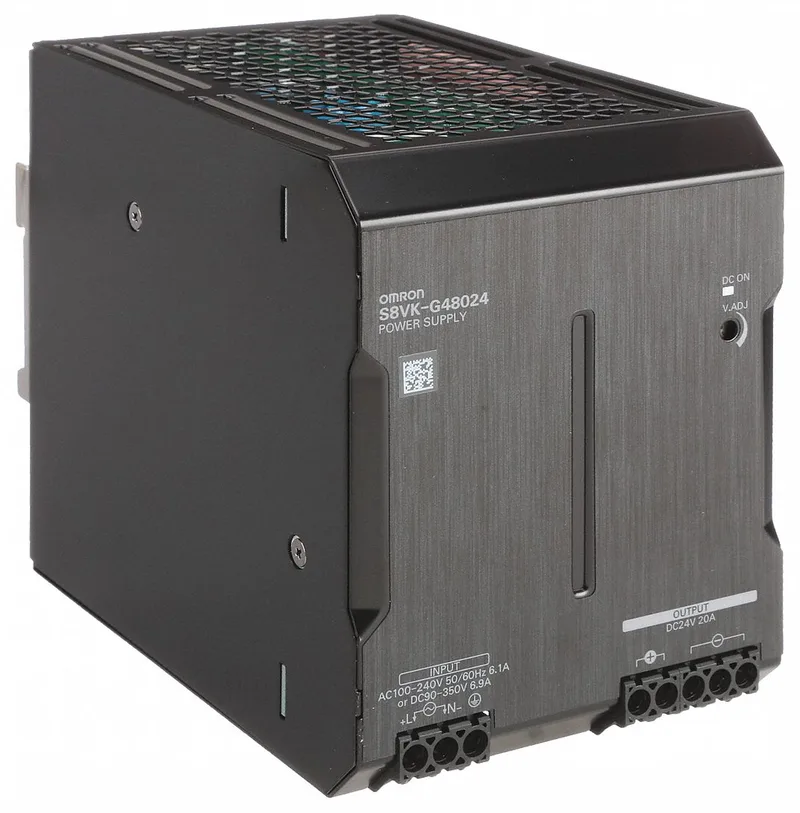

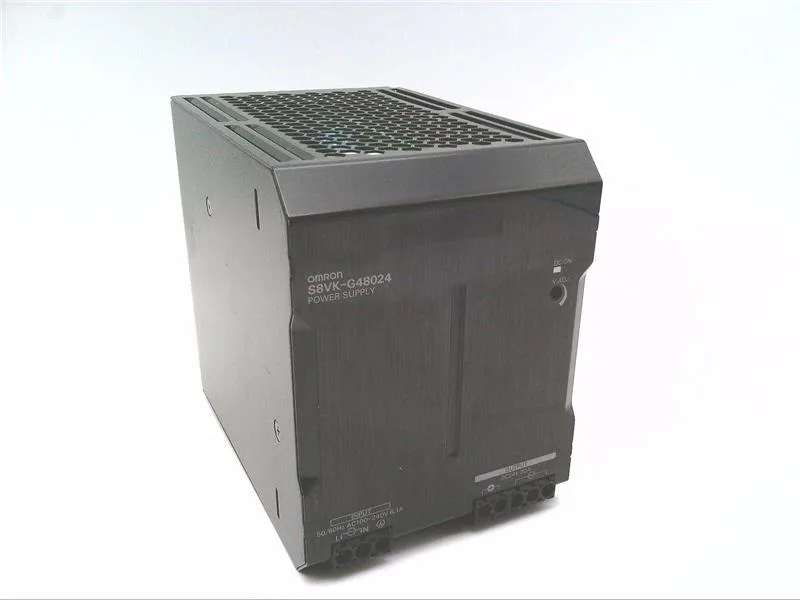

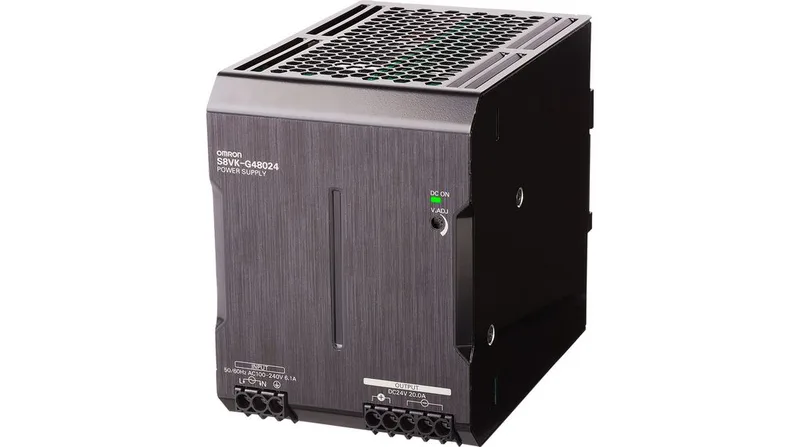

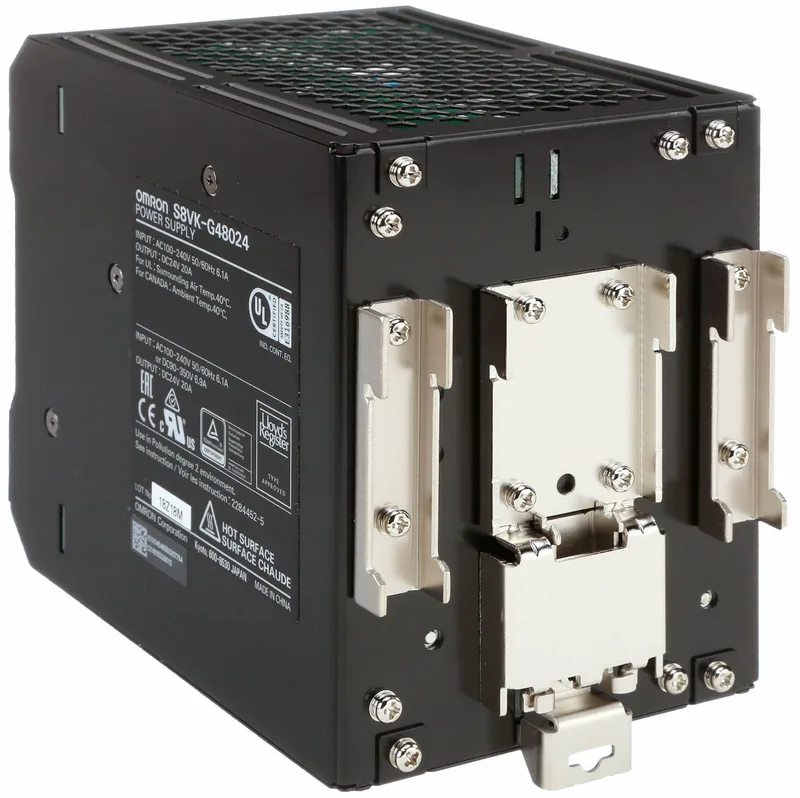

The Omron S8VK-G48024 is a single-phase 480 W power supply delivering a fixed 24 VDC at 20 A. It is a standard model in the S8VK-G series, DIN-rail mounted with screw terminals. At 93% efficiency, it keeps the panel temperature lower than older designs – relevant if your cabinet sits near a furnace line or other radiant sources. The metal housing and IP20 rating suit clean industrial enclosures; just don't expect it to take the direct heat off the rolls without forced ventilation.
Rated for the floor, not the furnace
24 VDC output: ambient -40 °F to 158 °F. Ripple noise 0.23 V (230 mV max). Hold-up time 40 msec; 50 msec. Screw terminals 16 AWG to 10 AWG. MTBF 230000 h.
Sourcing and compliance
This is current production – no phase-out, no last-time-buy looming. It carries UL 508, CSA C22.2, EN 62368-1, CE, and Lloyd’s approval per EN 60204-1 PELV, so it covers the majority of industrial and marine panel specs. Automatic reset, overload protection, overvoltage protection, parallel and series operation are built in. We source this to order against an RFQ; typical lead times are a few weeks unless your quantity pulls from an open factory slot. Submit an RFQ for firm pricing and delivery.
