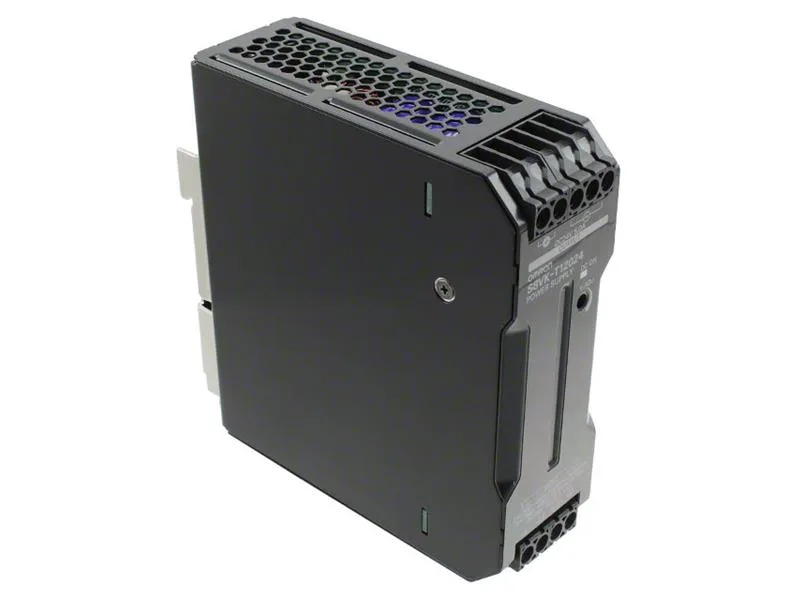

Omron S8VK-T12024

Omron S8VK-T12024 120W DIN Rail Power Supply, 24V 5A, 89% Ef

MPNS8VK-T12024

Omron S8VK-T, Switch Mode DIN Rail Power Supply, 380…480V AC input, 24V DC output at 5A, 120W rated power, efficiency 89 %.

$71.37 – $192.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

S8VK-T12024 key specifications
ParameterValue
SeriesS8VK-T
Output signalAdjustable
Termination typeScrew Terminal
Output voltage 124 V
Input voltage max.576 V
Input voltage min.320 V
Insulation voltage3 kV
Input voltage nominal400 VAC
Output voltage nominal 124 V
Output current 15 A
Rated power120 W
Operating temperature max.70 °C

All specifications

S8VK-T12024 additional specifications
ParameterValue
Operating temperature min.-40 °C
Depth122.2 mm
Width40 mm
Height125 mm
MTBF135000 h
Outputs1
Efficiency89 %
IP ratingIP20
Ripple & noise160 mV

Product details

The S8VK-T12024 is a 120 W DIN rail power supply from Omron's S8VK-T series, delivering 24 VDC at 5 A from a nominal 400 VAC three-phase input (320–576 VAC range). Efficiency is 89 % under nominal load, and MTBF is listed at 135000 h per the datasheet.

The 40 mm width is narrow for a 120 W supply; you can fit multiple units side by side on DIN rail without crowding gland plates. Depth is 122.2 mm — confirm your cabinet depth allows cable clearance in front of the terminals. Screw terminals for input and output are standard, rated for 3 kV insulation between primary and secondary.

Frequently asked questions

What is the MTBF of the S8VK-T12024?

The listed MTBF is 135000 hours under nominal operating conditions.

What is the physical depth of this power supply?

Depth is 122.2 mm from the mounting rail to the front of the terminals.

What are the key output ratings?

It provides 24 VDC at 5 A continuous, rated power 120 W, with adjustability on the output voltage.
