Omron S8VKT12024400 — DIN Rail Power Supplies

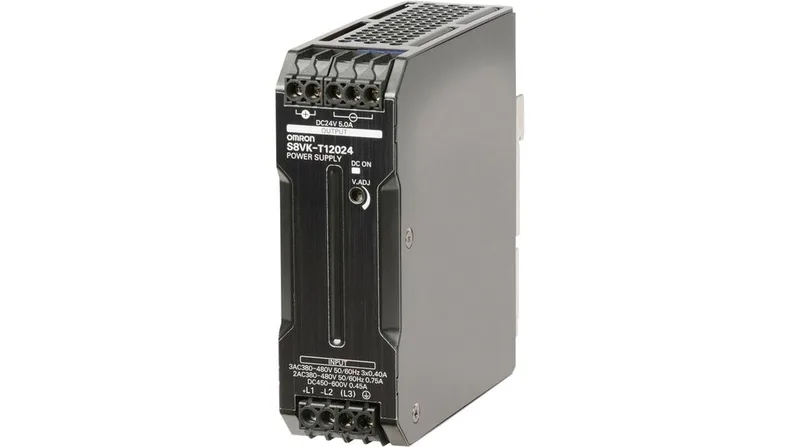

Omron S8VKT12024400 Power Supply, 120W/24V/5A, Current Produ

MPNS8VKT12024400

Omron S8VK-T Series, DIN Rail Power Supply, 120 W, 24 VDC, 5 A, Adjustable Output, 89% Efficiency, Screw Terminal, IP20.

$82.93 – $152.54Ref. price · indicative, final on quote
Omron S8VKT12024400 datasheet (PDF)
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

S8VKT12024400 key specifications
ParameterValue
SeriesS8VK-T
Output signalAdjustable
Termination typeScrew Terminal
Output voltage 124 V
Input voltage max.480 V
Input voltage min.380 V
Insulation voltage3 kV
Input voltage nominal380 ... 480 VAC
Output voltage nominal 124 V
Output current 15 A
Rated power120 W
Operating temperature max.70 °C

All specifications

S8VKT12024400 additional specifications
ParameterValue
Operating temperature min.-40 °C
Depth122.2 mm
Width40 mm
Height125 mm
MTBF135000 h
Outputs1
Efficiency89 %
IP ratingIP20
Ripple & noise160 mV

Product details

Integrator note on the S8VKT12024400

This 120 W DIN-rail supply from the S8VK-T series outputs 24 VDC at 5 A adjustable, with 89 % efficiency and 135000 h MTBF. Input is three-phase 380–480 VAC.

Mechanical and interface

Housing measures 125 mm high, 40 mm wide, and 122.2 mm deep. Termination is screw terminal rated IP20; output voltage is adjustable.

Frequently asked questions

What is the MTBF of the S8VKT12024400?

The listed MTBF is 135000 hours, a reliability figure suitable for continuous industrial use.
