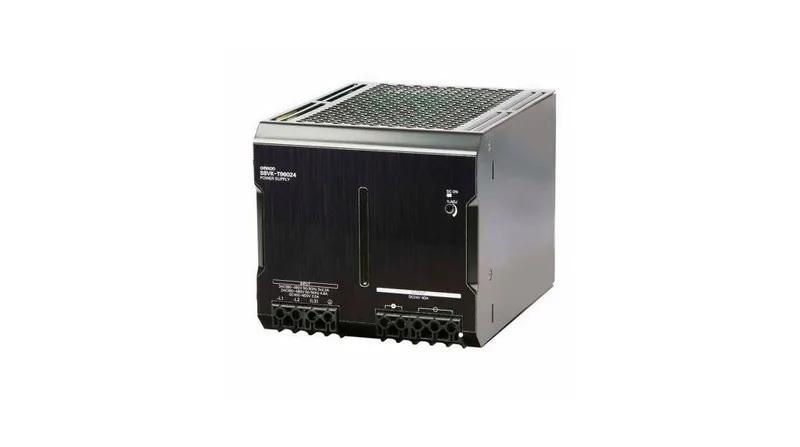

Omron S8VK-T96024 Switch Mode DIN Rail Power Supply, 960W, 24V DC 40A.
| Parameter | Value |
|---|---|
| Voltage out | 24 V dc |
| Voltage in max | 480 V ac |
| Voltage in min | 380 V ac |
| Voltage out max | 24 V dc |
| Voltage out min | 24 V dc |
| Power | 960 |
| I/O channels | 1 |
| Product type | Switch Mode Power Supply |
| Input voltage | 400 |
| Output current max | 40 |
The S8VK-T96024 delivers 960W from a single 24V DC rail at 40A. Input range is 380 to 480V AC three-phase, nominal 400V. That's a straight drop into a standard industrial panel — one output, no paralleling needed for loads under 40A.
Single 24V DC output at 40A feeds control circuits, PLCs, or I/O banks.
S8VKT96024 is the same part with a different dash. All electrical and mechanical ratings are identical — it is a direct drop-in.
Yes, they are fully interchangeable. The input range, output voltage, current, and DIN rail footprint are identical.
Single 24V DC output at 40A, 960W total.
380 to 480V AC three-phase, nominal 400V.
