Omron S8VK-WA48024

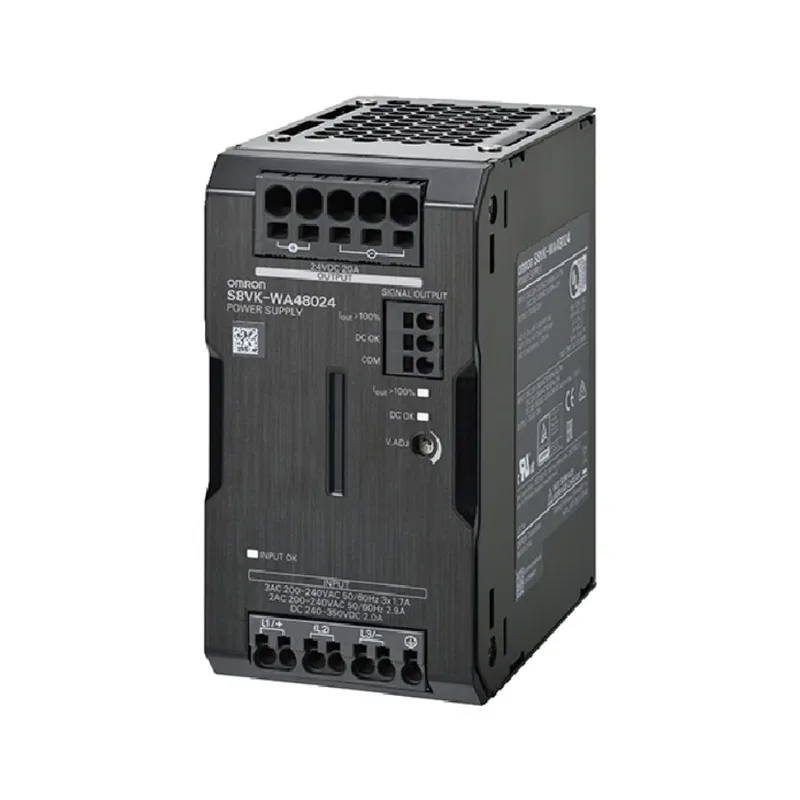

Omron S8VK-WA48024 Power Supply, 480W, 24V 20A, Three-Phase

MPN S8VK-WA48024

Omron S8VK-WA48024 Three-phase 200V Input Power Supply, 480 W, 24 VDC 20 A output, 30 A boost, Push-In Plus terminal blocks, IP20, 1.05 kg.

$177.93 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

S8VK-WA48024 specifications
ParameterValue
Terminal typePush-In Plus Terminal Block
IP ratingIP20
Weight1.05 kg

Product details

Active production, built for continuous duty

The Omron S8VK-WA48024 is a three-phase 200 to 240 VAC input power supply delivering 480 W at 24 VDC, rated for 20 A continuous output with a 30 A maximum boost current for motor starts or high-inrush loads.

What the ratings mean for your panel

The 20 A continuous rating at 24 VDC powers control loads, DC motor drives, or valve banks up to that current draw. The 30 A boost handles the inrush on a capacitive bank or a solenoid array without tripping into hiccup mode. Push-In Plus terminal blocks accept solid or ferruled stranded wire — no screw tightening, just strip and push. The covered construction protects against accidental contact in a live panel. IP20 rated per EN/IEC 60529 means the supply is protected against solid objects larger than 12 mm (fingers, tools). It mounts inside an enclosure that provides the wet-end seal.

Sourcing reality: active, quoted to order

This is an active Omron catalog item with typical lead times of 1 to 10 working days through distribution. No official successor or second-source cross-reference exists — the S8VK-WA48024 is the current production part for this power class.

MPN
S8VK-WA48024
