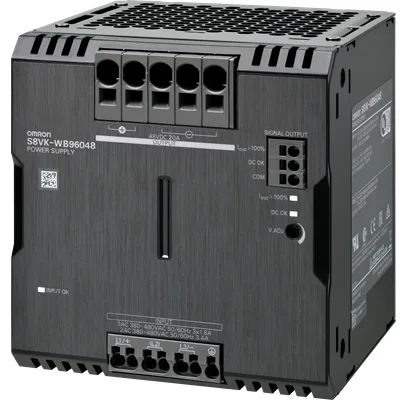

Omron S8VK-WB96048
MPNS8VK-WB96048
S8VK-WB 3 Phase Power Supply|A reduced form factor, full feature 3-phase power supply rated for 380-480 VAC input voltage
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Cooling type | Natural (gravity) |
| Enclosure type | Enclosed |
| Output voltage DC | 48 V |
| Supply voltage, DC | 450 to 810 VDC |
| Under-voltage alarm | Yes |
| Over-voltage protection | Yes |
| Supply voltage AC 2-phase | 340 to 576 VAC, 2-phase |
| Supply voltage, AC 3-phase | 320 to 576 VAC, 3-phase |
| Output current | 20 A |
| Output power | 960 W |
| Mounting | DIN Rail |
| Connection | Push-In Plus Terminal |
All specifications
| Parameter | Value |
|---|---|
| Depth range | 112 |
| Width range | 118 |
| Height range | 124 |
| Dimensions h x w x d | 124 x 118 x 112 |
| Standards | UL 508, UL 62368-1, CSA C22.2 No.62368-1 cUR, EN/IEC 62477-1, EN/IEC 62368-1, EN61000-6-4, EN/IEC 60204-1, EN/IEC 61558-2-16 |
| Diagnostic display | Yes |
| Overload protection | Yes |
MPN
S8VK-WB96048
