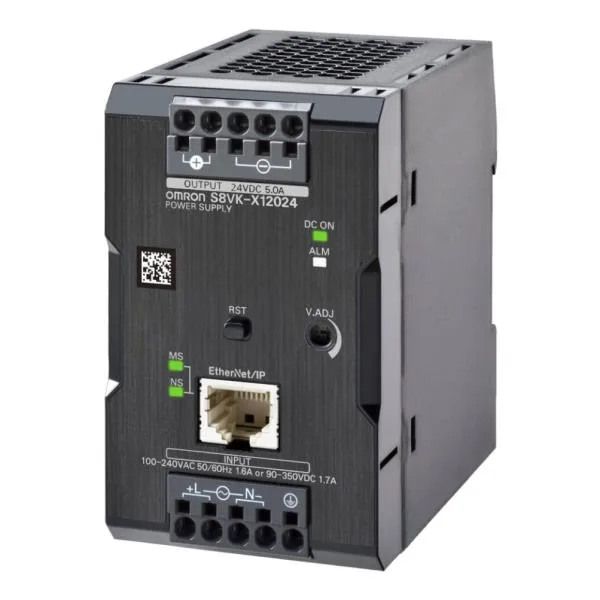

S8VK-X12024A-EIP - Omron
MPNS8VK-X12024A-EIP
OMRON DC Power Supply: DIN Rail, 120 W Output Power - Rated, 5 A Current - Output, Single Phase
$544.49Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | S8VK-X |
| Wire connection type | Push In |
| Input voltage | 100 to 240V AC |
| Output voltage - nominal | 24 V DC |
| Current - peak | 6 A |
| Current - inrush | 32 A |
| Output current | 5 A |
| Power supply style | Switching |
| Output power - rated | 120 W |
| Input frequency - minimum | 47 Hz |
| Input frequency - nominal | 50/60 Hz |
| Input frequency - maximuim | 63 Hz |
All specifications
| Parameter | Value |
|---|---|
| Phases | Single |
| IP rating | IP20 |
| Mounting | DIN Rail |
| Wire size - maximum | 14 AWG |
| Wire size - minimum | 18 AWG |
| Operating temperature - maximum | 158 °F |
| Operating temperature - minimum | -40 °F |
| Overall depth | 3.63 in |
| Overall width | 2.17 in |
| Overall height | 3.73 in |
| Mean time between failures | 110,000 hr |
| Standards | EN/IEC 60529 |
| Brand | OMRON |
| Special features | Alarm Indication; LED Diagnostic Indicators; Overload Protection; Overvoltage Protection; Parallel Capability; Peak-Hold Current Indication; Series Operation; Total Run Time Monitor |
| Status indicator | Green (Output); Red (Alarm) |
| Hold up time - minimum | 35 msec |
| Output noise - maximum | 150 mV |
| Start up time - maximum | 1,000 msec |
| Maximum efficiency @ 115V AC | 90 % |
| Maximum efficiency @ 230V AC | 92 % |
MPN
S8VK-X12024A-EIP
