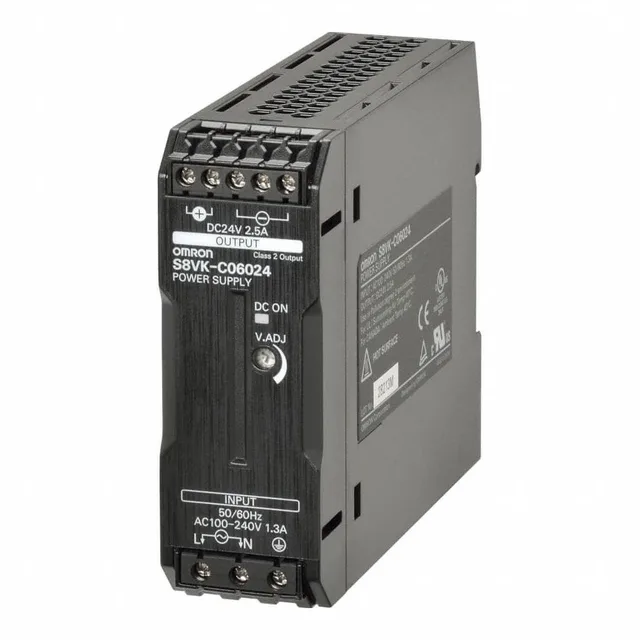

Omron S8VKC06024
MPNS8VKC06024
DIN Rail Power Supply 88% 24V 2.5A 60W Adjustable IP20 S8VK-C
$21.21Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | S8VK-C |
| Wire connection type | Screw Terminals |
| Input voltage | 100 to 240V AC; 90 to 350V DC |
| Output voltage - nominal | 24 V DC |
| Current - inrush | 32 A |
| Output current | 2.5 A |
| Power supply style | Switching |
| Output power - rated | 60 W |
| Input frequency - minimum | 47 Hz |
| Input frequency - nominal | 50/60 Hz |
| Input frequency - maximuim | 450 Hz |
| Phases | Single |
All specifications
| Parameter | Value |
|---|---|
| IP rating | IP20 |
| Wire size - maximum | 12 AWG |
| Wire size - minimum | 22 AWG |
| Operating temperature - maximum | 140 °F |
| Operating temperature - minimum | -13 °F |
| Overall depth | 4.33 in |
| Overall width | 1.26 in |
| Overall height | 3.73 in |
| Mean time between failures | 630,000 hr |
| Standards | CE; cRUus; CSA C22.2 No. 107.1/62368-1; EN55011 Class A; EN61204-3; EN62368-1; EN62477-1; UL Listed; UL508/62368-1 |
| Brand | OMRON |
| Special features | Overload Protection; Overvoltage Protection; Series Operation |
| Status indicator | Green DC OK Signal |
| Hold up time - minimum | 24 msec; 117 msec |
| Start up time - maximum | 530 msec |
| Maximum efficiency @ 230V AC | 88 % |
MPN
S8VKC06024
