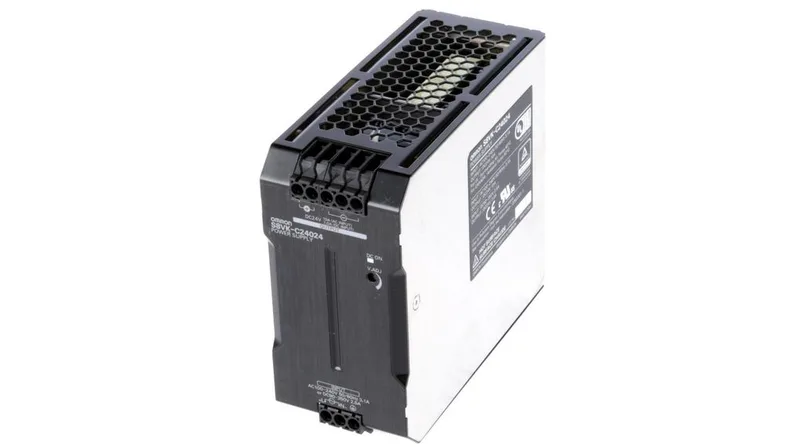

Omron S8VKC24024
MPNS8VKC24024
DIN Rail Power Supply 87% 24V 10A 240W Adjustable IP20 S8VK-C
$47.12Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | S8VK-C |
| Wire connection type | Screw Terminals |
| Input voltage | 100 to 240V AC; 90 to 350V DC |
| Output voltage - nominal | 24 V DC |
| Current - inrush | 32 A |
| Output current | 10 A |
| Power supply style | Switching |
| Output power - rated | 240 W |
| Input frequency - minimum | 47 Hz |
| Input frequency - nominal | 50/60 Hz |
| Input frequency - maximuim | 63 Hz |
| Phases | Single |
All specifications+16 ▾
| Parameter | Value |
|---|---|
| IP rating | IP20 |
| Wire size - maximum | 10 AWG |
| Wire size - minimum | 20 AWG |
| Operating temperature - maximum | 140 °F |
| Operating temperature - minimum | -13 °F |
| Overall depth | 5.91 in |
| Overall width | 2.36 in |
| Overall height | 5.11 in |
| Mean time between failures | 270,000 hr |
| Standards | CE; cRUus; CSA C22.2 No. 107.1/62368-1; EN55011 Class A; EN61204-3; EN62368-1; EN62477-1; UL Listed; UL508/62368-1 |
| Brand | OMRON |
| Special features | Overload Protection; Overvoltage Protection; Series Operation |
| Status indicator | Green DC OK Signal |
| Hold up time - minimum | 34 msec; 36 msec |
| Start up time - maximum | 790 msec |
| Maximum efficiency @ 230V AC | 87 % |
MPN
S8VKC24024
