Omron S8VKG48048 — DIN Rail Power Supplies

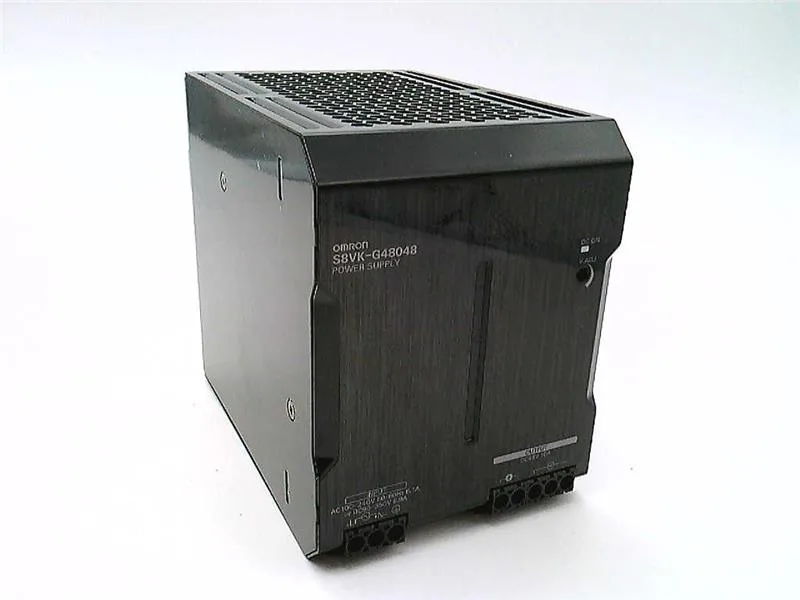

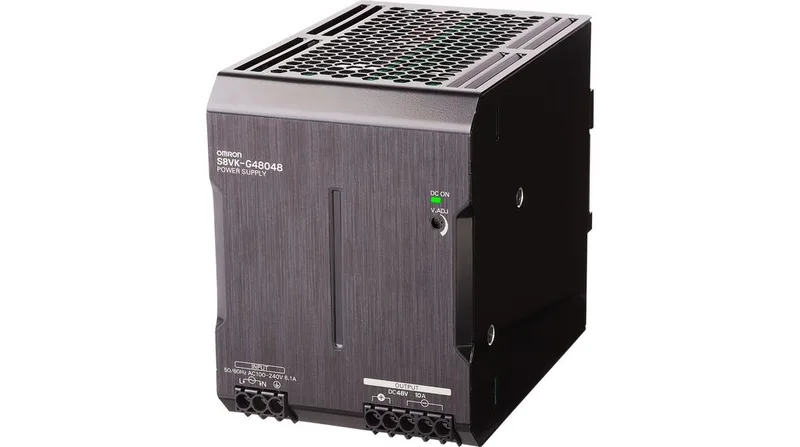

Omron S8VKG48048 Power Supply, 48V 10A 480W

MPNS8VKG48048

Omron S8VK-G series, single-phase switching power supply, 100-240 VAC input, 48 VDC / 10 A / 480 W output, DIN rail mount, metal housing.

$137.80 – $345.40Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

S8VKG48048 key specifications
ParameterValue
SeriesS8VK-G
Wire connection typeScrew Terminals
Input voltage100 to 240V AC
Output voltage - nominal48 V DC
Current - peak12 A
Current - inrush32 A
Output current10 A
Power supply styleSwitching
Output power - rated480 W
Input frequency - minimum47 Hz
Input frequency - nominal50/60 Hz
Input frequency - maximuim63 Hz

All specifications

S8VKG48048 additional specifications
ParameterValue
PhasesSingle
MountingDIN Rail
Wire size - maximum10 AWG
Wire size - minimum16 AWG
Operating temperature - maximum158 °F
Operating temperature - minimum-40 °F
Overall depth5.91 in
Overall width3.74 in
Overall height4.92 in
Housing materialMetal
Mean time between failures135,000 hr
StandardsCE; CSA C22.2 No. 107.1/62368-1; cULus; cURus; EN50178; EN61558-2-16; EN62368-1; Lloyd’s Standards EN60204-1 PELV; UL 508/62368-1
Special featuresAutomatic Reset; LED Diagnostic Indicators; Overload Protection; Overvoltage Protection; Parallel Capability; Series Operation
Status indicatorGreen LED
Hold up time - minimum40 msec; 50 msec
Output noise - maximum470 mV
Start up time - maximum520 msec

Product details

The Omron S8VKG48048 is a single-phase switching power supply from the S8VK-G series. It delivers 48 VDC at 10 A continuous, rated 480 W. Input accepts 100 to 240 VAC, 47–63 Hz. Enclosure is metal, DIN rail mount — IP20.

Panel-builder commissioning notes

Screw terminals accept 16–10 AWG wire. Green LED indicates output presence. Rated hold-up time is 40 msec (50 msec under lighter load). Start-up reaches nominal in 520 msec. Inrush current peaks at 32 A for a few cycles — factor that into upstream breaker selection if multiple units share a branch.

Standards compliance

Carries CE, cULus, cURus, CSA C22.2 No. 107.1/62368-1, EN50178, EN61558-2-16, EN62368-1, and Lloyd’s Standards EN60204-1 PELV. Complies with UL 508 and UL 62368-1. This covers most industrial and machinery panel certifications for North America and Europe.

Frequently asked questions

What is the output voltage and current of the S8VKG48048?

Output is 48 VDC at 10 A, 480 W.

What phase input does the S8VKG48048 require?

It is a single-phase power supply, accepting 100 to 240 VAC.

What series does the S8VKG48048 belong to?

It is part of the Omron S8VK-G series of switching power supplies.

What compliance documentation does the S8VKG48048 carry?

It is certified with CE, cULus, cURus, CSA, EN50178, EN61558-2-16, EN62368-1, and Lloyd’s Standards EN60204-1 PELV.
