Omron S8VKS06024
MPNS8VKS06024

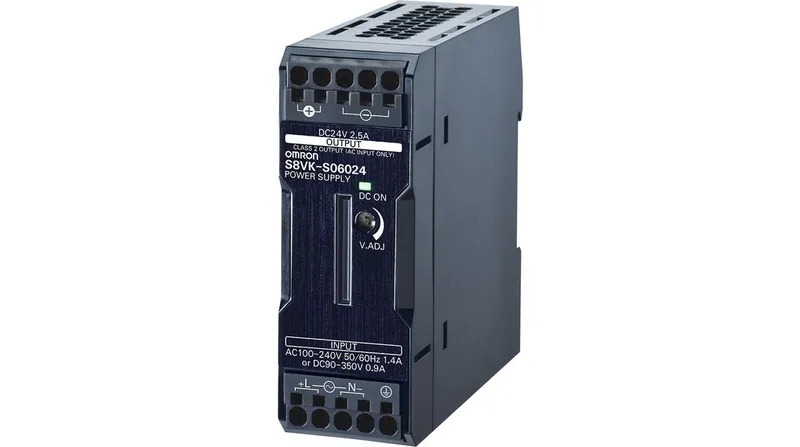

DIN Rail Power Supply 89% 24V 2.5A 60W Adjustable IP20 S8VK-S
$57.15 – $161.49Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | S8VK-S |
| Input voltage | 265 to 300V AC; 85 to 264V AC; 90 to 350V DC |
| Output voltage - nominal | 24 V DC |
| Current - peak | 3 A |
| Current - inrush | 32 A |
| Output current | 2.5 A |
| Power supply style | Switching |
| Output power - rated | 60 W |
| Input frequency - minimum | 47 Hz |
| Input frequency - nominal | 50/60 Hz |
| Input frequency - maximuim | 450 Hz |
| Phases | Single |
All specifications+17 ▾
| Parameter | Value |
|---|---|
| IP rating | IP20 |
| Mounting | DIN Rail |
| Operating temperature - maximum | 158 °F |
| Operating temperature - minimum | -40 °F |
| Overall depth | 3.54 in |
| Overall width | 1.26 in |
| Overall height | 3.73 in |
| Mean time between failures | 640,000 hr |
| Standards | EN/IEC 60529 |
| Brand | OMRON |
| Special features | LED Diagnostic Indicators; Overload Protection; Overvoltage Protection; Parallel Capability; Series Operation |
| Status indicator | Green LED |
| Hold up time - minimum | 20 msec; 95 msec |
| Output noise - maximum | 190 mV |
| Start up time - maximum | 1,000 msec |
| Maximum efficiency @ 115V AC | 87 % |
| Maximum efficiency @ 230V AC | 89 % |
MPN
S8VKS06024
