Omron S8VKS12024

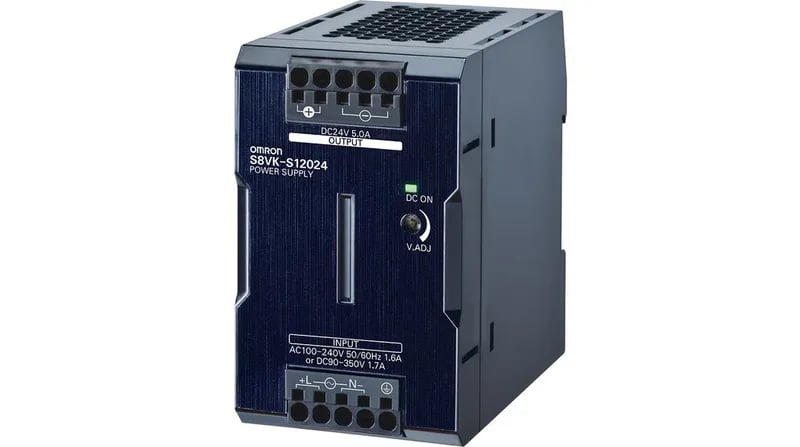

Omron S8VKS12024 DIN Rail Power Supply, 120W 24V 5A

MPNS8VKS12024

Omron S8VKS12024, DIN Rail Power Supply, S8VK-S series, 120W/24V/5A, adjustable output, 92% efficiency, MTBF 135000 h, 55x90x90 mm, screw terminals, IP20.

$74.93 – $217.00Ref. price · indicative, final on quote
Omron S8VKS12024 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

S8VKS12024 key specifications
ParameterValue
SeriesS8VK-S
Output signalAdjustable
Termination typeScrew Terminal
Output voltage 124 V
Input voltage max.264 V
Input voltage min.85 V
Insulation voltage3 kV
Input voltage nominal100 ... 240 VAC
Output voltage nominal 124 V
Output current 15 A
Rated power120 W
Operating temperature max.70 °C

All specifications

S8VKS12024 additional specifications
ParameterValue
Operating temperature min.-4 °C
Depth90 mm
Width55 mm
Height90 mm
MTBF135000 h
Outputs1
Efficiency92 %
IP ratingIP20
Ripple & noise110 mV

Product details

Power supply for DIN rail cabinets

Omron S8VKS12024 is a 120 W DIN rail power supply delivering 24 VDC at 5 A, with adjustable output. Efficiency is 92 %. Input range spans 85…264 VAC. MTBF is 135000 hours. I can get this on a quote for you; just send the quantity and I'll come back with a fast lead time. The S8VK-S series is still moving through distribution, so no last-time-buy panic here.

Physical fit and connections

Width is 55 mm, depth 90 mm, height 90 mm. Use a shallow enclosure; 90 mm depth fits most. Terminals are screw-type. IP20 protection keeps dust out but expects a clean indoor panel.

Frequently asked questions

What physical space does it take up on the DIN rail?

55 mm wide, 90 mm deep, 90 mm high. Shallow enough for most standard enclosures.
