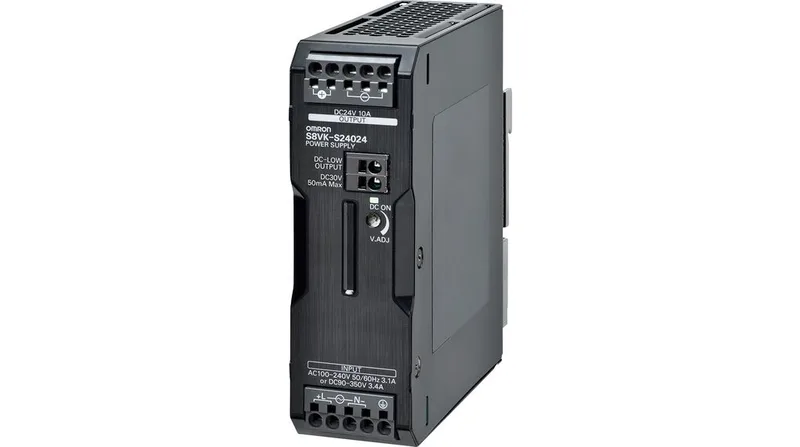

S8VKS24024 - Omron
MPNS8VKS24024
DIN Rail Power Supply 93% 24V 10A 240W Adjustable IP20 S8VK-S
$118.11 – $288.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | S8VK-S |
| Output signal | Adjustable |
| Termination type | Screw Terminal |
| Output voltage 1 | 24 V |
| Input voltage max. | 264 V |
| Input voltage min. | 85 V |
| Insulation voltage | 3 kV |
| Input voltage nominal | 100 ... 240 VAC |
| Output voltage nominal 1 | 24 V |
| Output current 1 | 10 A |
| Rated power | 240 W |
| Operating temperature max. | 70 °C |
All specifications
| Parameter | Value |
|---|---|
| Operating temperature min. | -40 °C |
| Depth | 122.2 mm |
| Width | 38 mm |
| Height | 124 mm |
| MTBF | 135000 h |
| Outputs | 1 |
| Efficiency | 93 % |
| IP rating | IP20 |
| Ripple & noise | 100 mV |
MPN
S8VKS24024
