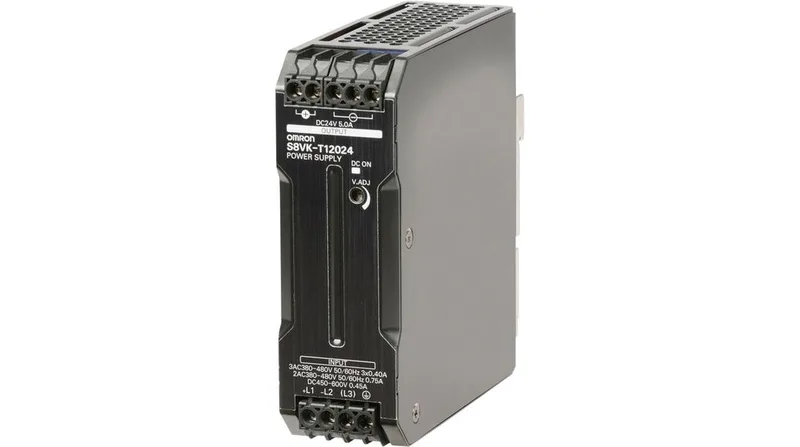

Omron S8VK-T Series, DIN Rail Power Supply, 120 W, 24 VDC, 5 A, Adjustable Output, 89% Efficiency, Screw Terminal, IP20.
| Parameter | Value |
|---|---|
| Series | S8VK-T |
| Output signal | Adjustable |
| Termination type | Screw Terminal |
| Output voltage 1 | 24 V |
| Input voltage max. | 480 V |
| Input voltage min. | 380 V |
| Insulation voltage | 3 kV |
| Input voltage nominal | 380 ... 480 VAC |
| Output voltage nominal 1 | 24 V |
| Output current 1 | 5 A |
| Rated power | 120 W |
| Operating temperature max. | 70 °C |
| Parameter | Value |
|---|---|
| Operating temperature min. | -40 °C |
| Depth | 122.2 mm |
| Width | 40 mm |
| Height | 125 mm |
| MTBF | 135000 h |
| Outputs | 1 |
| Efficiency | 89 % |
| IP rating | IP20 |
| Ripple & noise | 160 mV |
This 120 W DIN-rail supply from the S8VK-T series outputs 24 VDC at 5 A adjustable, with 89 % efficiency and 135000 h MTBF. Input is three-phase 380–480 VAC.
Housing measures 125 mm high, 40 mm wide, and 122.2 mm deep. Termination is screw terminal rated IP20; output voltage is adjustable.
The listed MTBF is 135000 hours, a reliability figure suitable for continuous industrial use.
