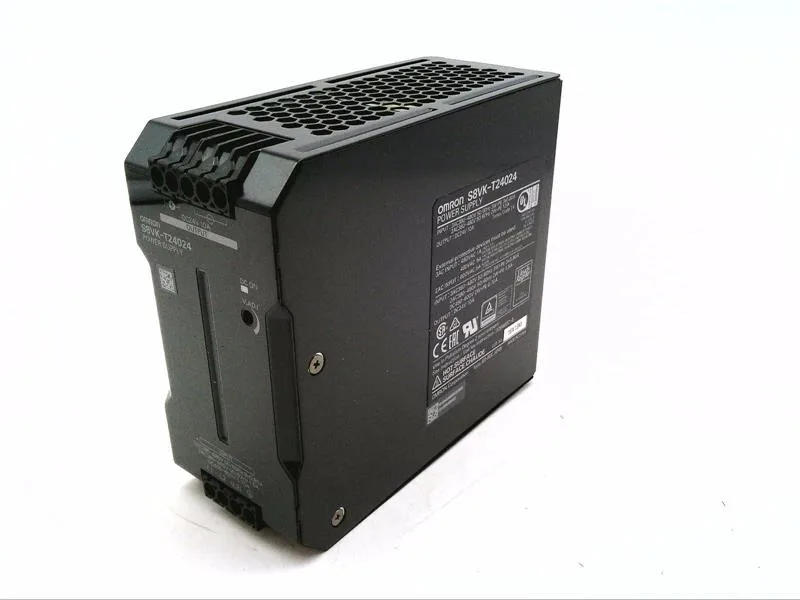

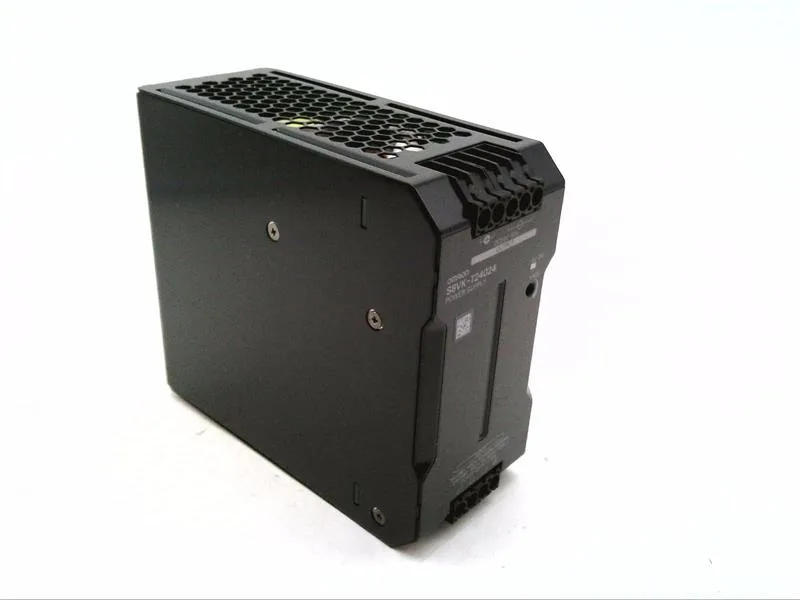

Omron S8VKT24024 DIN Rail Power Supply, 240W 24V 10A

MPNS8VKT24024

Omron S8VK-T series, DIN Rail Switching Power Supply, S8VKT24024, 240W 24V 10A, Three-Phase 380-480V AC.

$97.28Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

S8VKT24024 key specifications
ParameterValue
SeriesS8VK-T
Wire connection typeRod Terminals
Input voltage380 to 480V AC; 450 to 600V DC
Output voltage - nominal24 V DC
Current - peak12 A
Current - inrush29 A
Output current10 A
Power supply styleSwitching
Output power - rated240 W
Input frequency - minimum47 Hz
Input frequency - nominal50/60 Hz
Input frequency - maximuim63 Hz

All specifications

S8VKT24024 additional specifications
ParameterValue
PhasesThree
IP ratingIP20
MountingDIN Rail
Wire size - maximum10 AWG
Wire size - minimum22 AWG
Operating temperature - maximum158 °F
Operating temperature - minimum-40 °F
Overall depth5.91 in
Overall width2.36 in
Overall height4.92 in
Mean time between failures135,000 hr
StandardsEN/IEC 60529
Special featuresLED Diagnostic Indicators; Overload Protection; Overvoltage Protection; Parallel Capability; Series Operation
Status indicatorGreen LED
Hold up time - minimum24 msec
Output noise - maximum50 mV
Start up time - maximum600 msec

Product details

The S8VKT24024: Handles single-phase dropout too: the AC input range is 380-480 VAC, but it also runs on 450-600 VDC if you've got a battery bank or DC link handy. Startup takes 600 ms max, and the hold-up time after a power bump is at least 24 ms – enough to keep a controller alive through a brief sag.

Mounts on a DIN rail. Accepts wire from 22 AWG to 10 AWG. IP20 rated and includes a green LED status indicator. Efficiency runs 89% typical, which keeps the heat sink manageable. If you're stacking supplies side by side, leave a few millimeters of air gap – Omron recommends 10 mm top and bottom for convection cooling. You can also parallel two units for higher current or run them in series for a non-isolated 48V rail.

Frequently asked questions

What is the input phase of the S8VKT24024?

Three-phase AC input, 380 to 480 volts AC, or 450 to 600 volts DC.

What series does the S8VKT24024 belong to?

It's part of the Omron S8VK-T series of DIN rail power supplies.

What output voltage and current does the S8VKT24024 deliver?

24 volts DC at 10 amps, for a rated output power of 240 watts.
