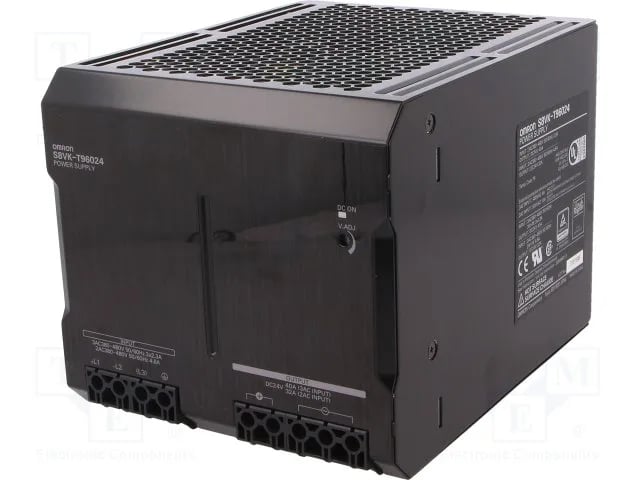

Omron S8VK-T96024, a 960W Switch Mode DIN Rail Power Supply, 380...480Vac input, 24Vdc 40A output, single output.
| Parameter | Value |
|---|---|
| Product type | Switch Mode Power Supply |
| Input voltage | 400V ac |
| Output voltage | 24 V dc |
| Maximum input voltage | 480V ac |
| Minimum input voltage | 380V ac |
| Maximum output voltage | 24V dc |
| Minimum output voltage | 24V dc |
| Output current | 40 A |
| Power rating | 960W |
| I/O channels | 1 |
| Shipping weight | 5Kg |
| Manufacturer | Omron |
| Estimated lead time | 1 - 10 Working days. |
The Omron S8VKT96024 is a 960W DIN rail switch mode power supply, part of the S8VK-T series, delivering 24Vdc at 40A from a three-phase 380-480Vac input. Rated for continuous 40A output, the single-output design supplies 960W to industrial control loads, sensors, and actuators in panel applications.
The power supply delivers 24Vdc at 40A, providing 960W.
The input is three-phase 380-480Vac.
