Omron S8VS-06024 — DIN Rail Power Supplies

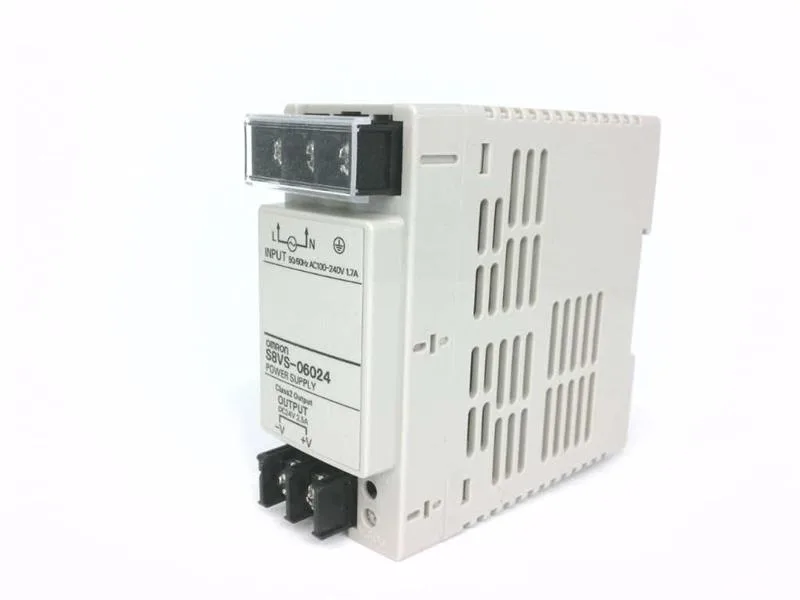

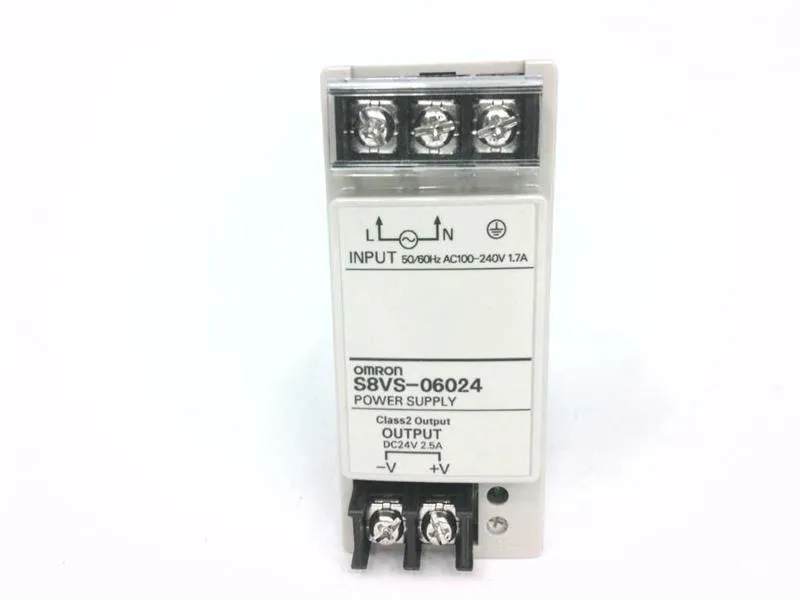

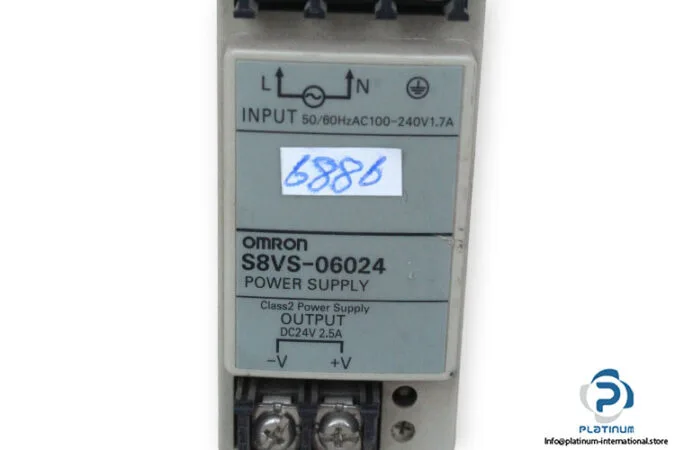

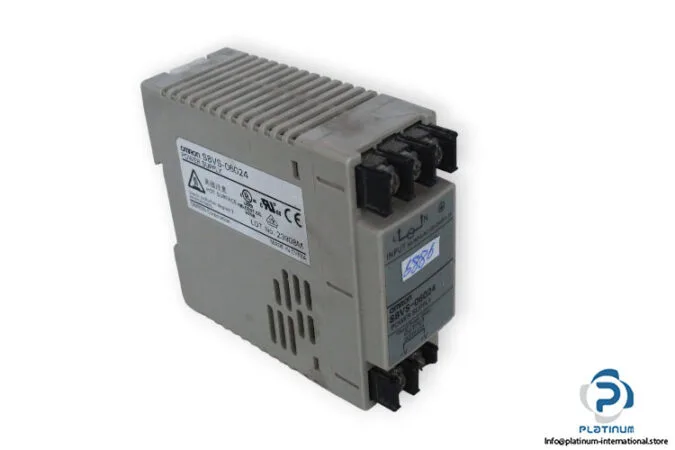

Omron S8VS-06024 Power Supply, 60W, 24VDC, 2.5A

MPNS8VS-06024

Omron S8VS series power supply, 60W, 24 VDC output at 2.5 A, 100–240 VAC single-phase input, DIN rail mount.

$177.20Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

S8VS-06024 — Specifications
ParameterValue
Amps2.500
TypePower Supply
Phases1
Wattage60
Volts DC24

Product details

The Omron S8VS-06024 is a 60 W DIN-rail power supply delivering a regulated 24 VDC output at 2.5 A from a 100–240 VAC single-phase input — the kind of compact brick that lives in a control cabinet feeding sensors, PLCs, relays, and small valve banks. 2.5 A at 24 VDC covers a modest control circuit; think a dozen or so 24 VDC relays plus a small PLC rack and a handful of prox sensors. The 60 W rating is the total continuous power it can source, so if you're loading outputs, sum the draw across all channels — the 2.5 A is the hard limit on the 24 V rail.

Single-phase input means no need for a three-phase feed; just land L and N from a 100–240 VAC source and the 24 VDC output terminals. No shop, no crane — fix it where it sits.

Frequently asked questions

What are the key output ratings for the S8VS-06024?

It delivers 60 W at 24 VDC, with a maximum continuous output current of 2.5 A.

Where can I buy the S8VS-06024 and what is the lead time?

The S8VS-06024 is sourced and quoted to order against an RFQ through independent distribution; availability and current pricing are confirmed at quote time.

MPN
S8VS-06024
