Omron S8VS-09024A — DIN Rail Power Supplies

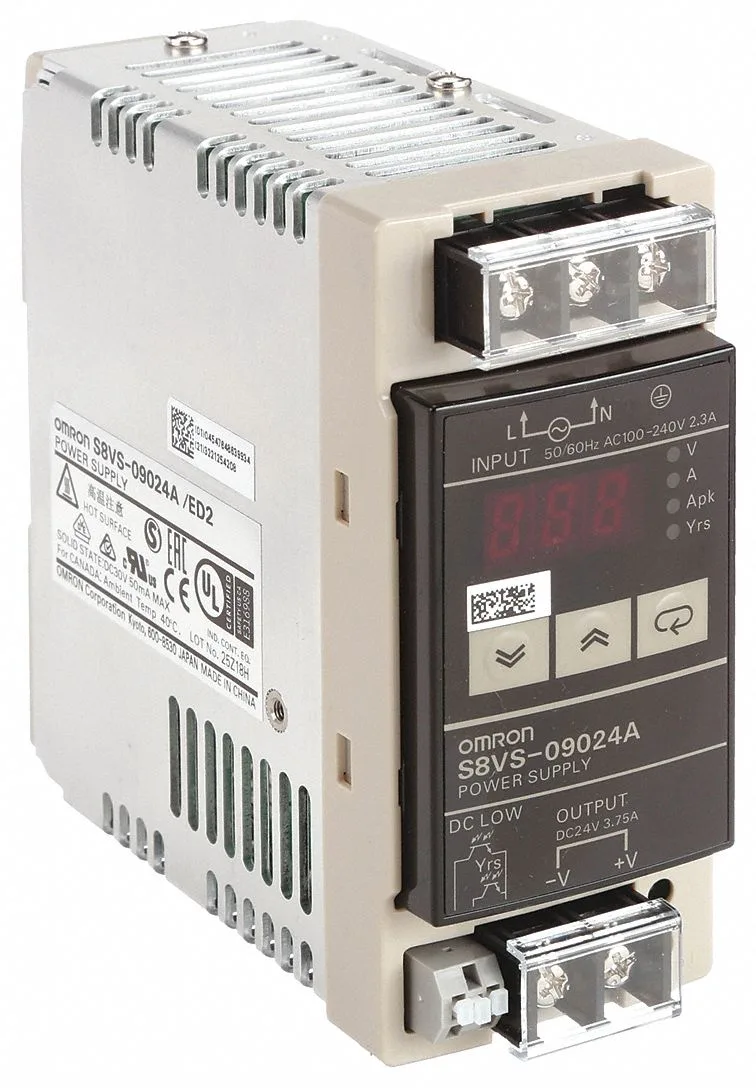

Omron S8VS-09024A DIN Rail Power Supply, 90W 24VDC

MPNS8VS-09024A

Omron S8VS-09024A, DIN Rail Switching Power Supply, Single Phase, 100-240V AC Input, 24V DC 3.75A 90W Output.

$201.93 – $285.44Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

S8VS-09024A key specifications
ParameterValue
SeriesS8VS
Wire connection typeScrew Terminals
Input voltage100 to 240V AC
Output voltage - nominal24 V DC
Current - inrush28 A
Output current3.75 A
Power supply styleSwitching
Output power - rated90 W
Input frequency - minimum47 Hz
Input frequency - nominal50/60 Hz
Input frequency - maximuim450 Hz
PhasesSingle

All specifications

S8VS-09024A additional specifications
ParameterValue

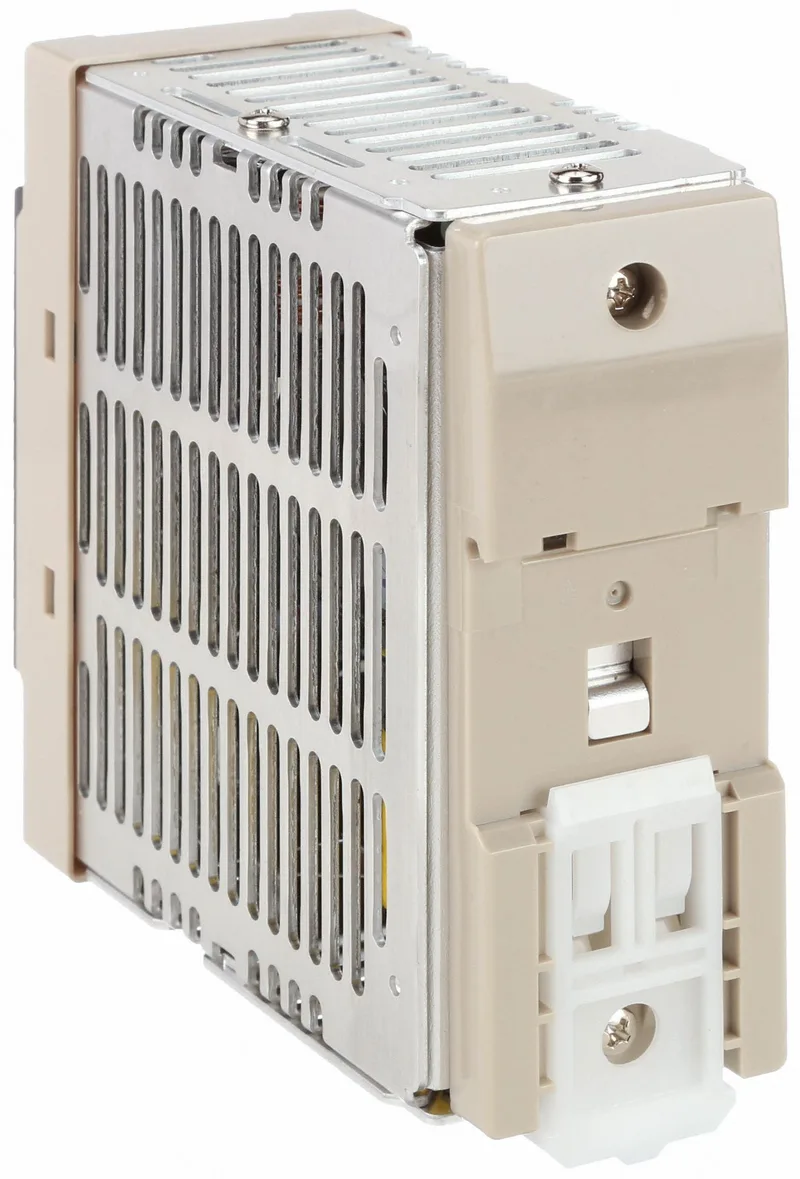

MountingDIN Rail
Wire size - maximum14 AWG
Wire size - minimum28 AWG
Operating temperature - maximum185 °F
Operating temperature - minimum14 °F
Overall depth4.78 in
Overall width1.97 in
Overall height3.74 in
Housing materialPlastic
Mean time between failures135,000 hr
StandardsCSA C22.2 No.107.1; CSA C22.2 No.107.1 (cUL); CSA C22.2 No.62368-1 (cUR); EN 62368-1; EN 62477-1; KOSHA S Mark *10; RCM Mark; UL 508 (Listing); UL 62368-1
Special features7-Segment Display; Overload Protection; Overvoltage Protection; Undervoltage Alarm Indication
Status indicatorGreen LED
Hold up time - minimum28 msec; 136 msec
Output noise - maximum150 mV
Start up time - maximum660 msec

Product details

The S8VS-09024A: A built-in 7-segment display shows output voltage and load current, and the front-panel green LED confirms output status. The supply also integrates overload and overvoltage protection plus an undervoltage alarm indicator — features typically found on pricier clinical-grade supplies, here packaged in a plastic housing sized 1.97 x 3.74 x 4.78 inches. Input connection uses screw terminals accepting 28 to 14 AWG. Hold-up time is 28 ms at full load and 136 ms under lighter conditions; output ripple is 150 mV max and start-up completes within 660 ms.

The S8VS-09024A holds a current lifecycle stage. It is available on a quoted-to-order basis against your RFQ; confirm specific lead time and batch availability at the time of ordering.

Frequently asked questions

What phase and input voltage does the S8VS-09024A accept?

It is a single-phase unit accepting 100 to 240 V AC at 47–450 Hz (nominal 50/60 Hz).

What safety and compliance standards does the S8VS-09024A meet?

It carries UL 508 (Listing), CSA C22.2 No.107.1 (cUL), CSA C22.2 No.62368-1 (cUR), EN 62368-1, EN 62477-1, KOSHA S Mark, and RCM Mark approvals.

What are the key output specifications of the S8VS-09024A?

Output is 24 V DC at 3.75 A, rated 90 W. Output ripple is 150 mV maximum, and start-up time is 660 ms maximum.
