S8VS-09024AP
MPNS8VS-09024AP

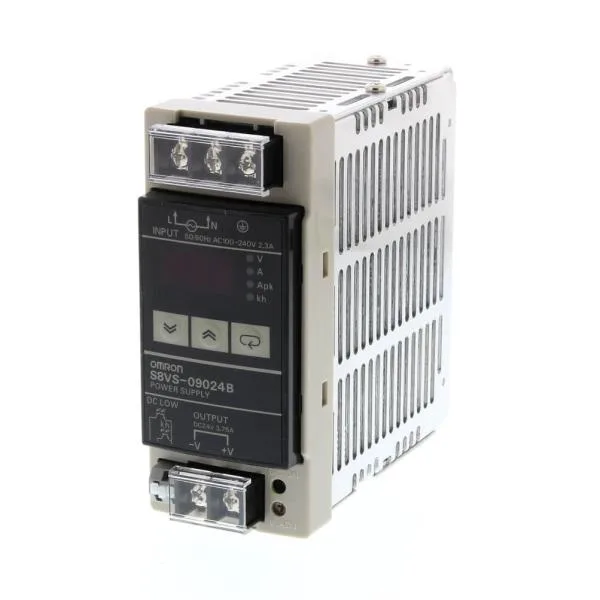

OMRON DC Power Supply: DIN Rail, 90 W Output Power - Rated, 3.75 A Current - Output, Single Phase
$243.74 – $329.23Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | S8VS |
| Wire connection type | Screw Terminals |
| Input voltage | 100 to 240V AC |
| Output voltage - nominal | 24 V DC |
| Current - inrush | 28 A |
| Output current | 3.75 A |
| Power supply style | Switching |
| Output power - rated | 90 W |
| Input frequency - minimum | 47 Hz |
| Input frequency - nominal | 50/60 Hz |
| Input frequency - maximuim | 450 Hz |
| Phases | Single |
All specifications+16 ▾
| Parameter | Value |
|---|---|
| Mounting | DIN Rail |
| Wire size - maximum | 14 AWG |
| Wire size - minimum | 28 AWG |
| Operating temperature - maximum | 140 °F |
| Operating temperature - minimum | 14 °F |
| Overall depth | 4.78 in |
| Overall width | 1.97 in |
| Overall height | 3.74 in |
| Mean time between failures | 135,000 hr |
| Standards | CSA C22.2 No.107.1; CSA C22.2 No.107.1 (cUL); CSA C22.2 No.62368-1 (cUR); EN 62368-1; EN 62477-1; KOSHA S Mark *10; RCM Mark; UL 508 (Listing); UL 62368-1 |
| Brand | OMRON |
| Special features | 7-Segment Display; Overload Protection; Overvoltage Protection; Undervoltage Alarm Indication |
| Status indicator | Green LED |
| Hold up time - minimum | 28 msec; 136 msec |
| Output noise - maximum | 250 mV |
| Start up time - maximum | 660 msec |
MPN
S8VS-09024AP
