Power supply for 24 VDC control loops

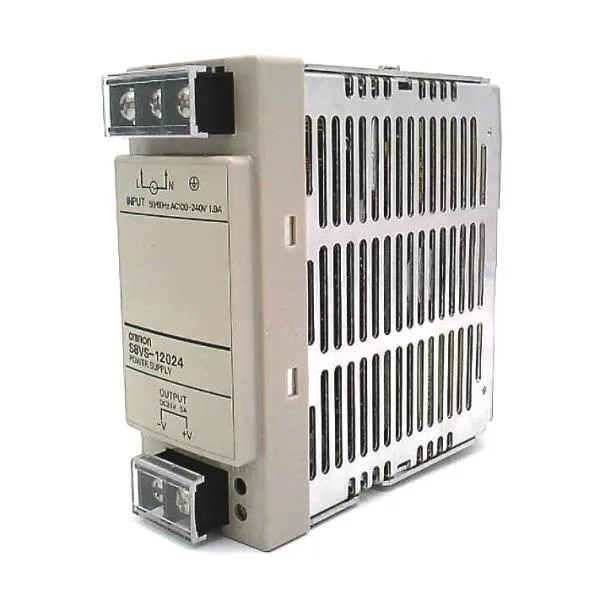

The Omron S8VS-12024-F is a 120 W switched-mode power supply delivering a regulated 24 VDC output — sized for a typical control cabinet's DC bus powering PLCs, I/O slices, relays, and small valve banks. The 120 W rating means it can source up to 5 A continuously at 24 VDC, enough for a modest panel without oversizing. The screwless terminal block (push-in style) accepts ferruled stranded or solid conductors up to 2.5 mm² — no screwdriver needed for wiring, which speeds panel assembly and reduces torque-related connection failures. The sinking (emitter COM) alarm output provides a dry-contact signal for remote monitoring of output voltage status.
Integration note: panel fit and wiring
The S8VS-12024-F mounts on a DIN rail (standard TS35) and occupies about 55 mm of rail width — typical for a 120 W enclosed supply. The 24 VDC output is isolated and short-circuit protected; the alarm output sinks to COM when the output falls below the rated voltage threshold, which can be wired to a PLC digital input for remote fault annunciation.
