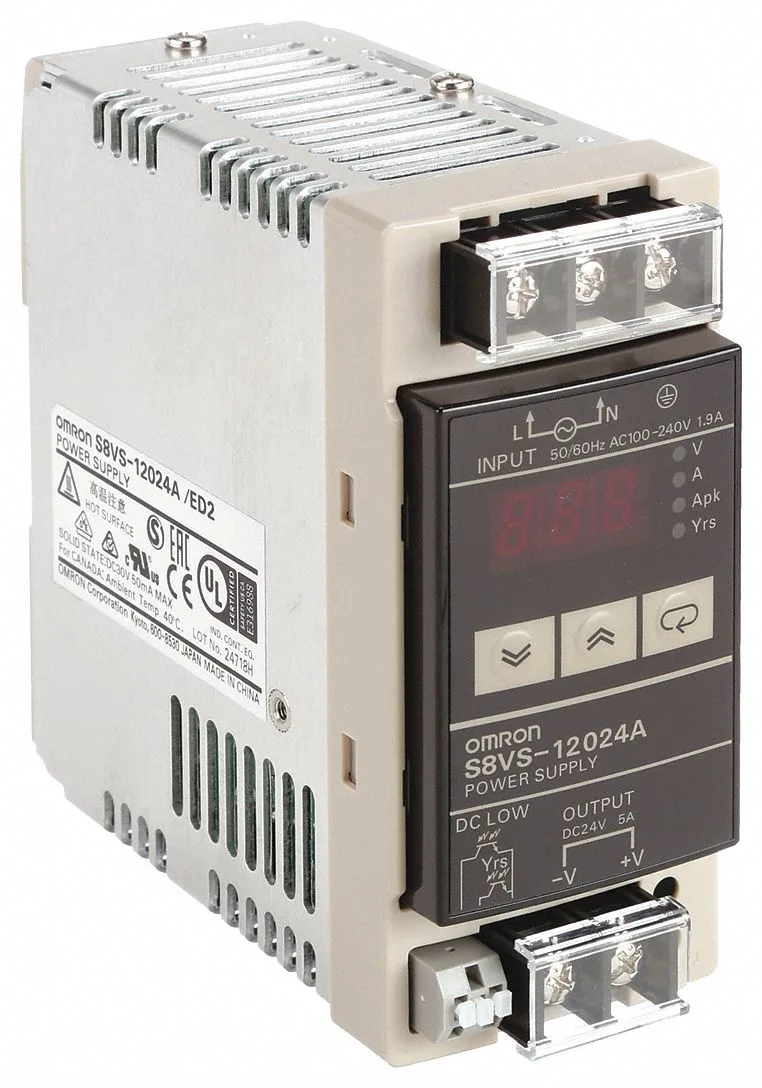

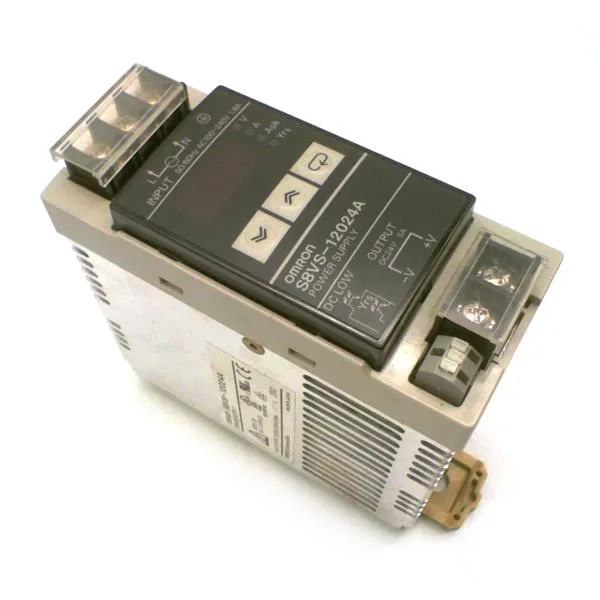

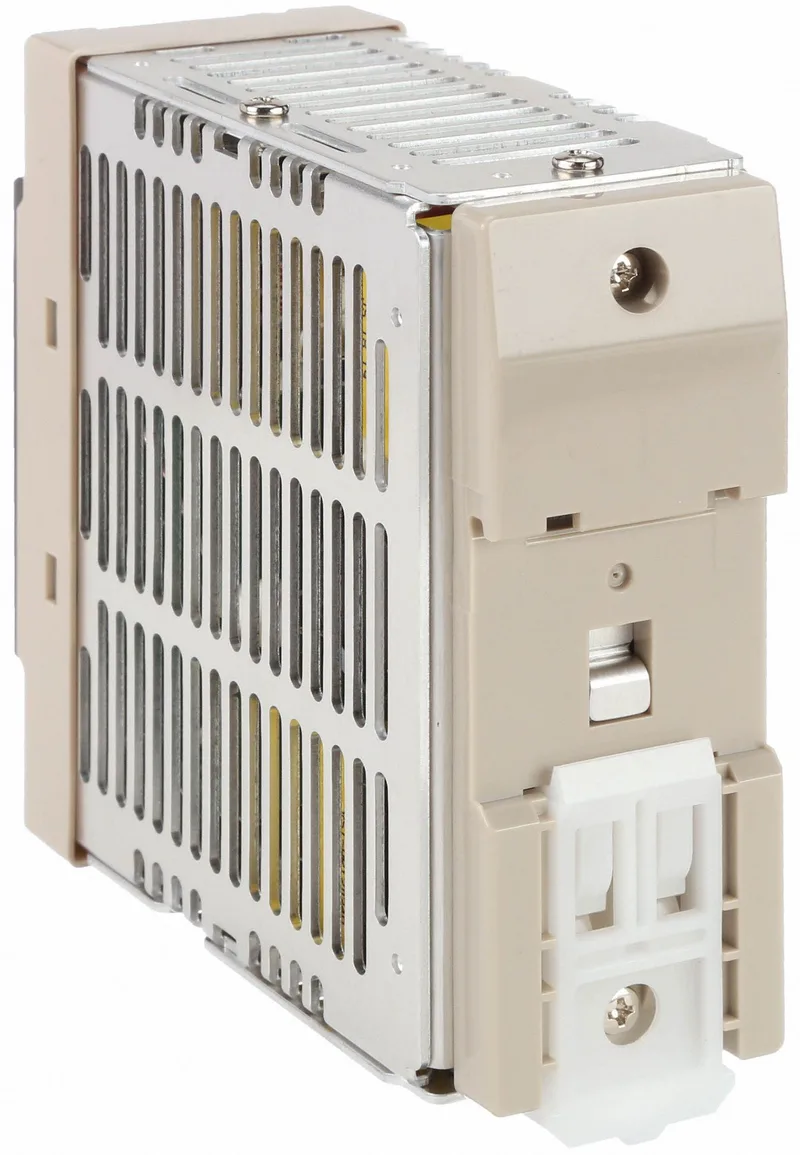

The S8VS-12024A: Sized for control-voltage buses and small machine power feeds. Output holds 24 VDC at 5 A continuous, with a 56 msec hold-up time to ride through line dips. Inrush current hits 28 A — factor the branch circuit breaker accordingly. Switching frequency noise is rated 130 mV max; keep sensitive analog wiring physically separated from the output terminals. Single-phase input accepts 100-240 VAC, 47-63 Hz, so it covers worldwide mains without a voltage selector switch. DIN rail mount with screw terminals; wire range 28-14 AWG. Seven-segment display and status LED give front-panel voltage readout plus overload/overvoltage/undervoltage alarms — useful for panel-mounted troubleshooting without a meter.
Agency approvals include UL 508 listing, CSA C22.2 No. 107.1, EN 62477-1, and RCM, covering compliance for North American and European machinery builds.
