Lead – sourcing perspective

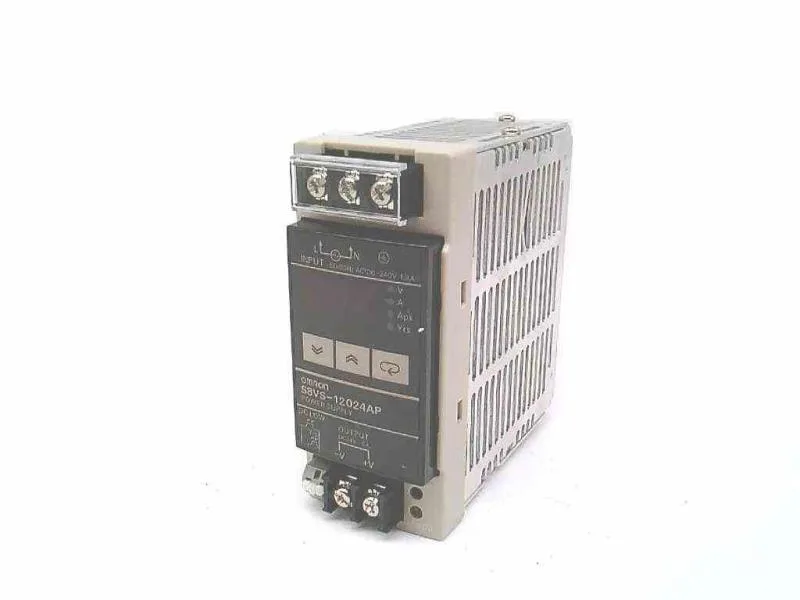

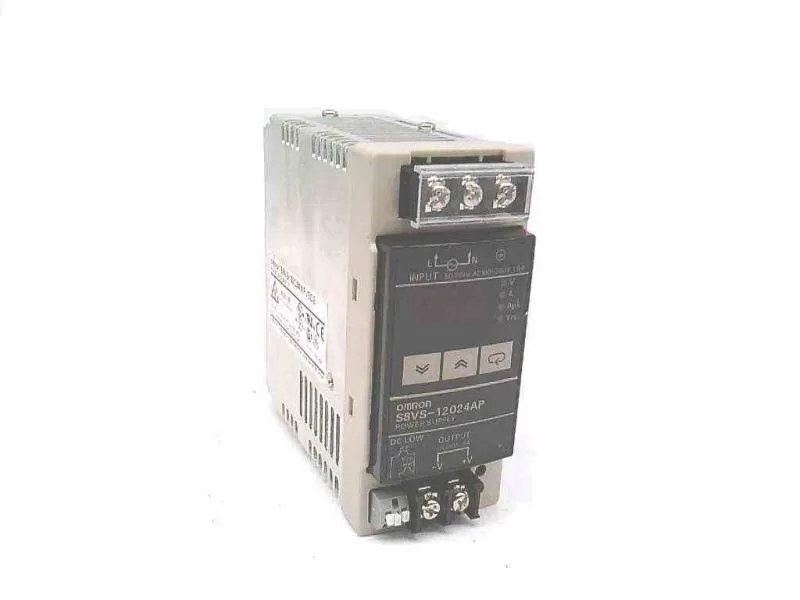

The Omron S8VS-12024AP is an active-production, single-phase switched-mode power supply delivering 5 A at 24 V DC from a 100 to 240 V AC input. Rated at 120 W, it covers the most common control voltage requirement for PLCs, sensors, and HMI panels. Output noise spec'd at 130 mV — standard for this class. Unless you're feeding sensitive analog inputs with no filtering, that number is not a purchase driver. The front-panel 7-segment display and count-down timer let you track runtime or schedule preventive maintenance without adding a separate timer relay. That's a feature you'd otherwise pay extra for. Lifecycle status is current — no pending EOL or last-time-buy risk. Sourced to order via RFQ; no need to chase shrinking stocks.
Compliance and mounting
Carries UL 508 listing, CSA to C22.2 No. 107.1, and EN 62477-1. Acceptable for UL 508A panels without a separate fuse evaluation. DIN rail mount with 1.97 in width — one standard module slot. Screw terminals accept 28 to 14 AWG, so no ferrule crimping for typical control wiring.
