Omron S8VS-12024B — DIN Rail Power Supplies

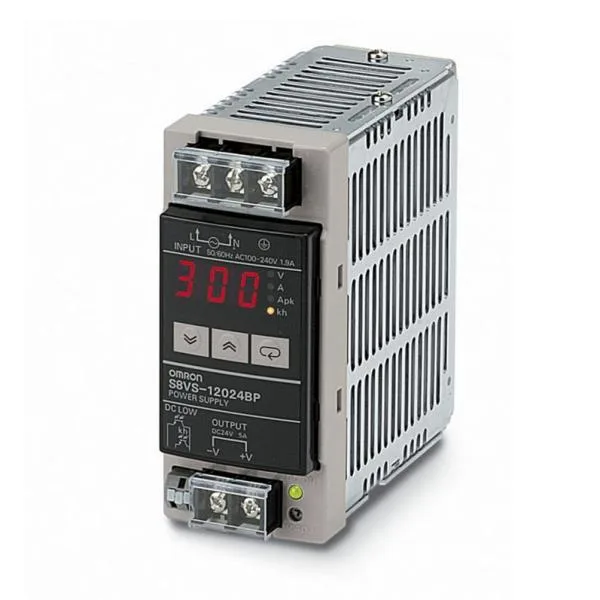

Omron S8VS-12024B DC Power Supply, 120W 5A

MPNS8VS-12024B

Omron S8VS-12024B, DIN Rail Switching Power Supply, 100-240V AC Input, 24V DC 5A Output, 120W, Active.

$204.47 – $399.34Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

S8VS-12024B key specifications
ParameterValue
SeriesS8VS
Wire connection typeScrew Terminals
Input voltage100 to 240V AC
Output voltage - nominal24 V DC
Current - inrush28 A
Output current5 A
Power supply styleSwitching
Output power - rated120 W
Input frequency - minimum47 Hz
Input frequency - nominal50/60 Hz
Input frequency - maximuim63 Hz
PhasesSingle

All specifications

S8VS-12024B additional specifications
ParameterValue
MountingDIN Rail
Wire size - maximum14 AWG
Wire size - minimum28 AWG
Operating temperature - maximum140 °F
Operating temperature - minimum14 °F
Overall depth4.78 in
Overall width1.97 in
Overall height4.71 in
Mean time between failures135,000 hr
StandardsCSA C22.2 No. 107.1 (cUL); EN 62477-1; KOSHA S Mark *10; RCM Mark; UL 508 (Listing)
Special features7-Segment Display; Overload Protection; Overvoltage Protection; Undervoltage Alarm Indication
Status indicatorGreen LED
Hold up time - minimum56 msec
Output noise - maximum60 mV
Start up time - maximum650 msec

Product details

S8VS-12024B is an Omron switching power supply, single-phase, DIN-rail mount. Output 24V DC, 5A, 120W.

This is an active, current-production part. We source it quoted-to-order against an RFQ—lead times are stable for a standard 120W DIN supply in the S8VS family. If you're freezing a BOM line, specify the S8VS-12024B; it's a straightforward 24V bus power source with solid protection coverage. The compliance pack includes UL 508 listing, CSA C22.2 No. 107.1, EN 62477-1, KOSHA S Mark, and RCM, so it clears the typical panel certification gates.

Frequently asked questions

What is the input phase for the S8VS-12024B?

It is a single-phase input power supply.

What series does the S8VS-12024B belong to?

It belongs to the Omron S8VS series.

What compliance documentation is available for the S8VS-12024B?

It carries UL 508 listing, CSA C22.2 No. 107.1, EN 62477-1, KOSHA S Mark, and RCM Mark.
