The screw terminals accept 0.5–2.5 mm² stranded or solid conductors — strip length 8 mm. Leave at least 50 mm clearance above and below for convection cooling; derate output by 2.5% per °C above 50 °C ambient. The DC OK relay contact is rated 30 VDC / 1 A resistive — wire it to the PLC digital input for remote status monitoring.

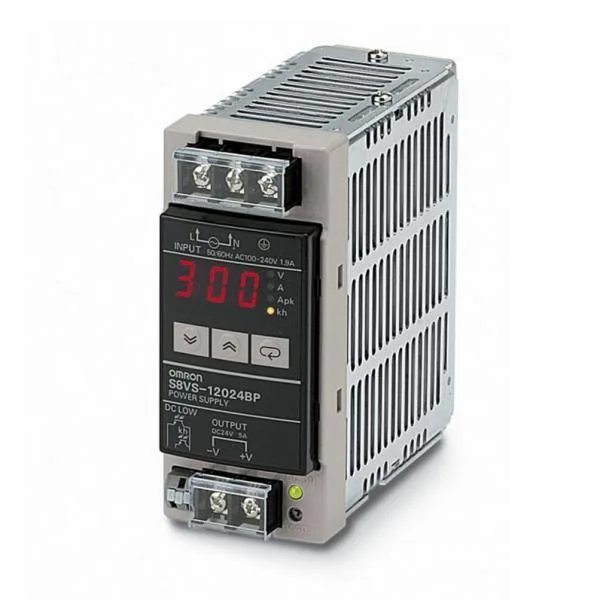

Omron S8VS-12024B/ED2 Power Supply, 24 VDC, 120 W
MPNS8VS-12024B/ED2
Omron S8VS series, Power Supply, 24 VDC output, 120 W, screw terminal block, current lifecycle stage.
$384.44Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Weight | 0.49 kgs |
Product details
Frequently asked questions
Where can I buy S8VS-12024B/ED2?
Sourced and quoted to order against an RFQ through independent distribution channels. Availability and current pricing confirmed at quote time.
Will S8VS-12024B/ED2 drop into a panel designed for S8VS-48024?
No — the 120 W unit has a smaller footprint and different terminal layout than the 480 W sibling. The DIN-rail bracket and wiring will need rework.
MPN
S8VS-12024B/ED2
