Omron S8VS-18024B — Power Supplies

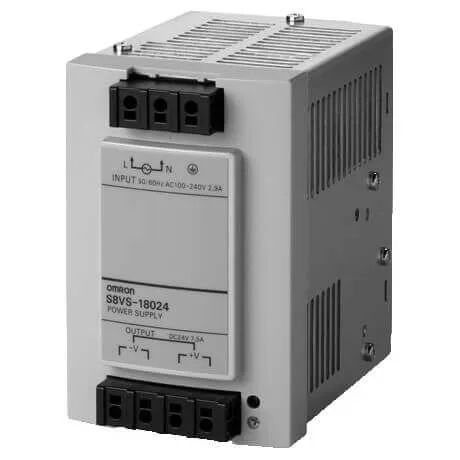

Omron S8VS-18024B Power Supply, 180 W, 24 VDC

MPNS8VS-18024B

Omron S8VS series, 180 W, 24 VDC output, screw terminal block, sinking alarm output, indication monitor.

$241.74Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

S8VS-18024B — Electrical
ParameterValue
Output voltage24 VDC output
S8VS-18024B — Mechanical
ParameterValue
Weight0.91 kgs
S8VS-18024B — Other specifications
ParameterValue
Alarm outputSinking (Emitter COM)
Power rating180 W
Indication monitorIndication monitor (total run time)
Terminal block formScrew terminal block

Product details

The Omron S8VS-18024B is a 180 W DIN-rail power supply delivering a 24 VDC output. It includes a sinking (emitter common) alarm output and an indication monitor that tracks total run time — useful for preventive maintenance scheduling on a control panel.

Rated 180 W at 24 VDC output — that's 7.5 A continuous, sized for a mixed load of PLCs, I/O racks, and small field devices. The sinking alarm output (emitter common) signals a fault or output drop; if your PLC input card expects a sourcing signal, you'll need a pull-up resistor or an interface relay.

Frequently asked questions

What is the closest functional second-source to S8VS-18024B?

The S8VS-48024 is a higher-power sibling in the same family (480 W vs 180 W, both 24 VDC output with screw terminals). It shares the same form factor and terminal layout but is physically larger at 1.48 kg. The S8VS-48024 lacks the run-time monitor and uses a sinking/sourcing alarm output instead of the fixed sinking (emitter common) type on the 18024B.

Will S8VS-18024B drop into a panel specified around S8VS-48024 without rewiring?

The terminal block form (screw terminals) and 24 VDC output are identical, so wiring connections are compatible. However, the S8VS-48024 is heavier (1.48 kg) and delivers 480 W — the 18024B is a drop-in only if the load current stays under 7.5 A and the alarm output type (sinking only) matches your PLC input.

Where can I buy S8VS-18024B?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

MPN
S8VS-18024B
