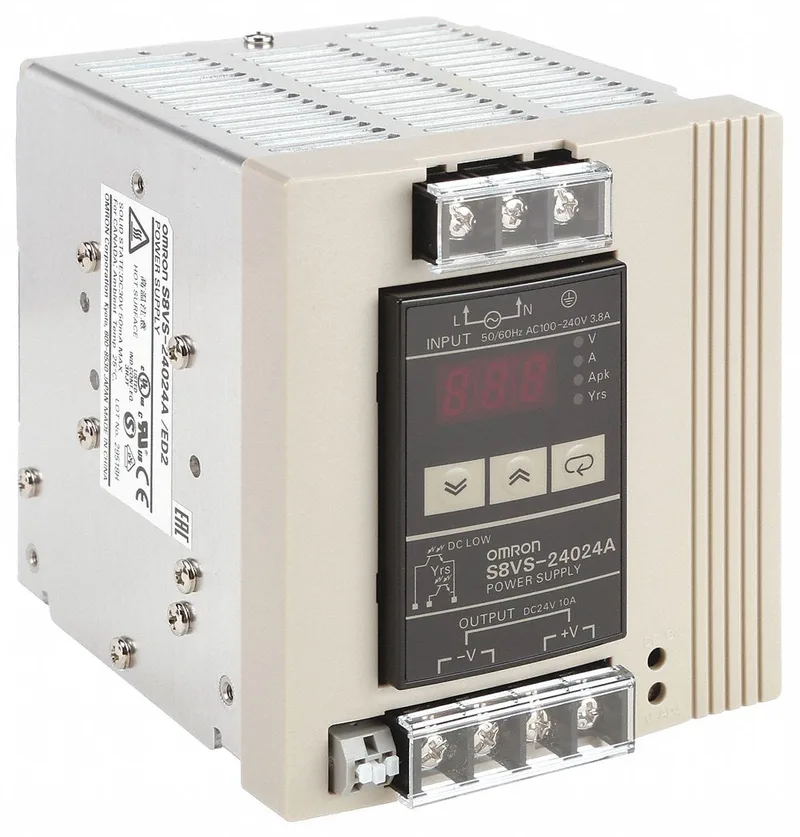

The Omron S8VS-24024A: 24V DC at 10A for the Panel
The Omron S8VS-24024A is a single-phase switching supply delivering 24V DC at 10A (240W) from a 100 to 240V AC input. It mounts on a DIN rail and includes a 7-segment display for voltage/current indication and alarms for undervoltage, overload, and overvoltage.

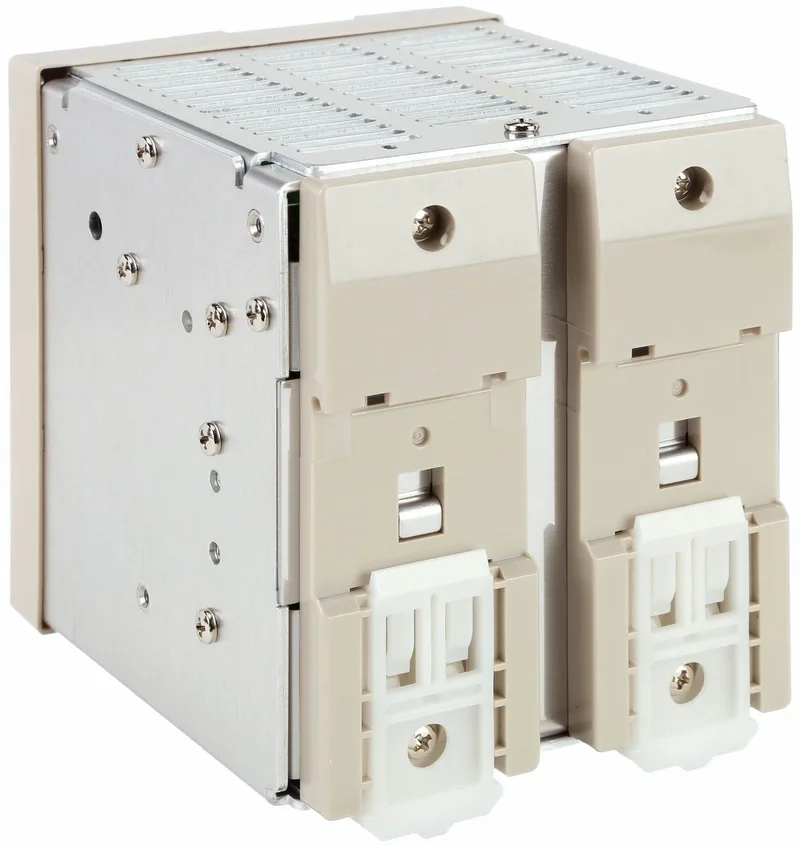

Mounting and Wiring – Panel-Builder Notes
Hold-up time is 46ms minimum, enough to ride through a half-cycle dropout. Startup to full output takes 510ms max. Output ripple is 160mV – no trouble for most PLCs and sensors, but if you're feeding sensitive analog gear, a small filter might be in order.
Compliance and Lifecycle – What the Buyer Needs
It carries UL 508 listing, CSA C22.2 No.107.1 (cUL), EN 62477-1, KOSHA S Mark, and RCM Mark – so documentation for most panel certification audits is in the package. No phase-out in sight; the lifecycle is marked current, so it's a normal-sourcing item.
