What you’re getting – in the van, on the rail

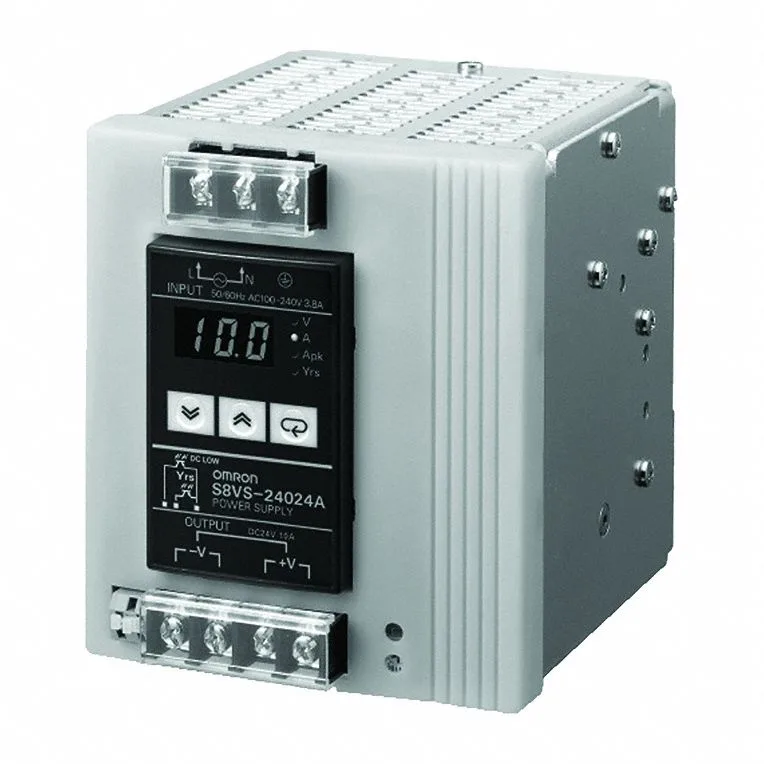

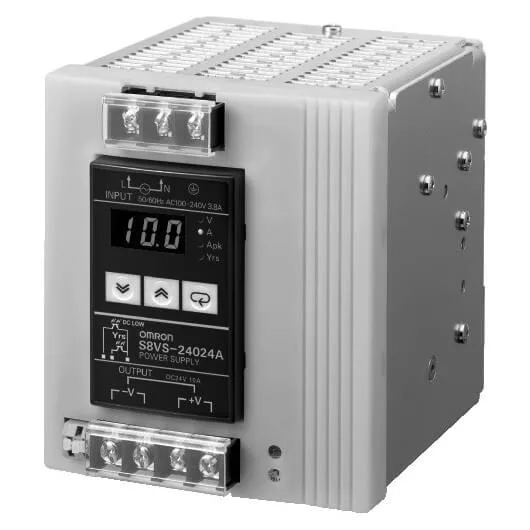

The S8VS-24024AP is a 240-watt switching power supply that takes single-phase 100 to 240 VAC (47–63 Hz) and gives you 24 VDC at 10 A. The 7-segment display and green LED are useful on a startup or fault call: peak output noise is 160 mV, hold-up time is 46 ms minimum, and startup is under 510 ms.
Standards – panel certification shorthand
Listed under UL 508 and CSA C22.2 No.107.1 (cUL), plus EN 62477-1 for safety, with KOSHA S Mark and RCM. That covers most North American and European panel builds without extra paperwork. No PCN or EOL note on this unit.
3.94 x 4.71 x 4.95 inch box (WxHxD); screw terminals accept 28 to 14 AWG. Overload, overvoltage, and undervoltage alarms are included; the display shows count-down or status.
