The S8VS-48024: 480 W at 24 VDC gives you 20 A of continuous load current. That covers a mixed bank of 24 VDC PLCs, sensors, and small valve islands — figure roughly 4–6 A per typical 8-slot rack plus field I/O. The alarm output is configurable sinking or sourcing, which saves one interposing relay when wiring into a PLC input module. Screw terminals are the standard choice for panel builders who prefer field-termination reliability over spring-cage speed.

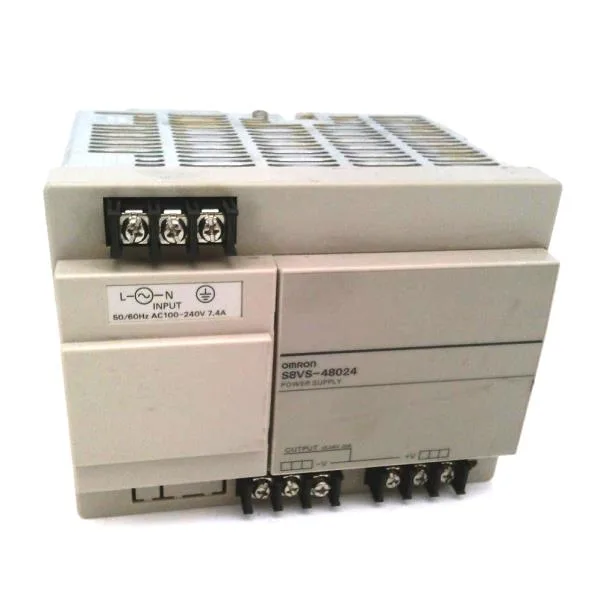

Omron S8VS-48024 Power Supply, 480 W, 24 VDC
MPNS8VS-48024
Omron S8VS series, 480 W DIN-rail power supply, 24 VDC output, screw terminal block, sinking/sourcing alarm output.
$813.97Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Output voltage | 24 VDC output |
| Parameter | Value |
|---|---|
| Weight | 1.48 kgs |
| Parameter | Value |
|---|---|
| Alarm output | Sinking/Sourcing |
| Power rating | 480 W |
| Indication monitor | Without indication |
| Terminal block form | Screw terminal block |
Product details
Frequently asked questions
What is the closest alternative to the S8VS-48024 in the same family?
Within the S8VS series, each power rating (120 W, 240 W, 480 W, 960 W) has a distinct frame and terminal layout. There is no pin-compatible drop-in at a different wattage. The 480 W unit is its own tier.
What compliance documentation does Omron provide for this power supply?
The evidence does not list specific certifications. For a BOM compliance audit, request the RoHS/REACH/UL declarations as part of the RFQ — those are standard Omron deliverables for the S8VS series.
MPN
S8VS-48024
