Omron S8VS-48024A

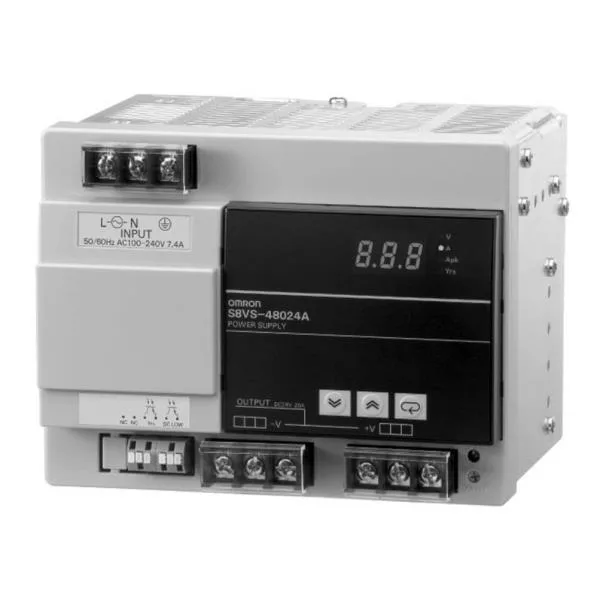

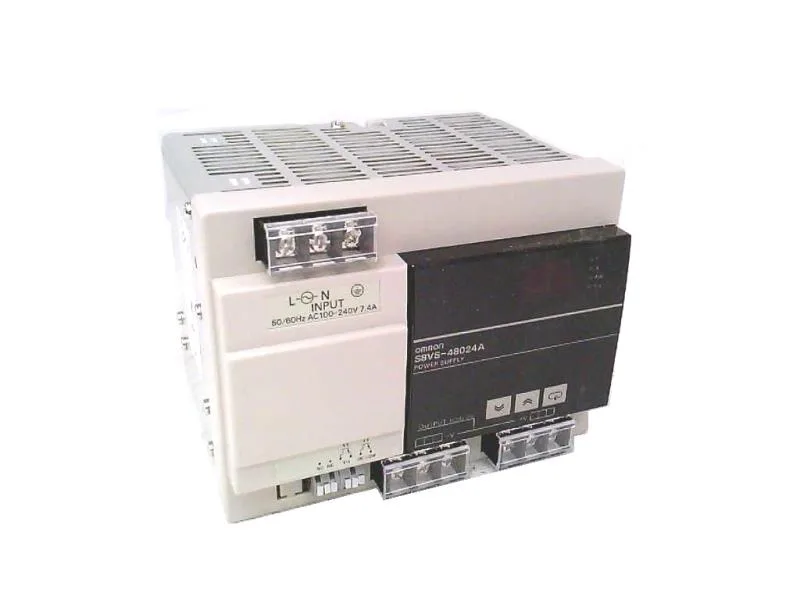

Omron S8VS-48024A Power Supply, 480W, 24V 20A, DIN Rail

MPNS8VS-48024A

Omron S8VS-48024A, 480 W, 24 V DC, 20 A, single phase switching power supply, DIN rail mount.

$793.43 – $856.68Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

S8VS-48024A key specifications
ParameterValue
SeriesS8VS
Wire connection typeScrew Terminals
Input voltage100 to 240V AC
Output voltage - nominal24 V DC
Current - peak30 A
Current - inrush28 A
Output current20 A
Power supply styleSwitching
Output power - rated480 W
Input frequency - minimum47 Hz
Input frequency - nominal50/60 Hz
Input frequency - maximuim63 Hz

All specifications

S8VS-48024A additional specifications
ParameterValue
PhasesSingle
MountingDIN Rail
Wire size - maximum14 AWG
Wire size - minimum28 AWG
Operating temperature - maximum185 °F
Operating temperature - minimum14 °F
Overall depth5.01 in
Overall width5.91 in
Overall height4.71 in
Housing materialPlastic
Mean time between failures60,000 hr
StandardsCSA C22.2 No. 62368-1 (cUR); CSA C22.2 No.107.1 (cUL); EN 62368-1; EN 62477-1 (=VDE 0160); RCM Mark; UL 508 (Listing); UL 62368-1 (Recognition)
Special features7-Segment Display; Overload Protection; Overvoltage Protection; Undervoltage Alarm Indication
Status indicatorGreen LED
Hold up time - minimum37 msec; 41 msec
Output noise - maximum310 mV
Start up time - maximum550 msec

Product details

The S8VS-48024A: Hold-up time is a minimum of 37 msec (41 msec typical), enough to ride through a half-cycle dropout at 50 Hz. Startup time to full output is 550 msec maximum. Output noise stays under 310 mV — fine for digital loads; if feeding analog inputs, plan a small post-filter.

DIN rail mounting. Screw terminals accept 14 to 28 AWG. Dimensions: 5.91 in wide, 4.71 in tall, 5.01 in deep. Carries UL 508 listing, cUR and cUL to CSA C22.2, EN 62368-1 and 62477-1, plus RCM mark. Suitable for industrial control panels with global compliance requirements.

Frequently asked questions

What phase is the S8VS-48024A rated for?

Single phase input, 100 to 240 V AC.

What series does the S8VS-48024A belong to?

The S8VS series.

What compliance certifications does the S8VS-48024A carry?

UL 508 listing, cUR, cUL (CSA C22.2 No. 62368-1 and No.107.1), EN 62368-1, EN 62477-1 (=VDE 0160), and RCM mark.
