180W DIN Rail Power Supply

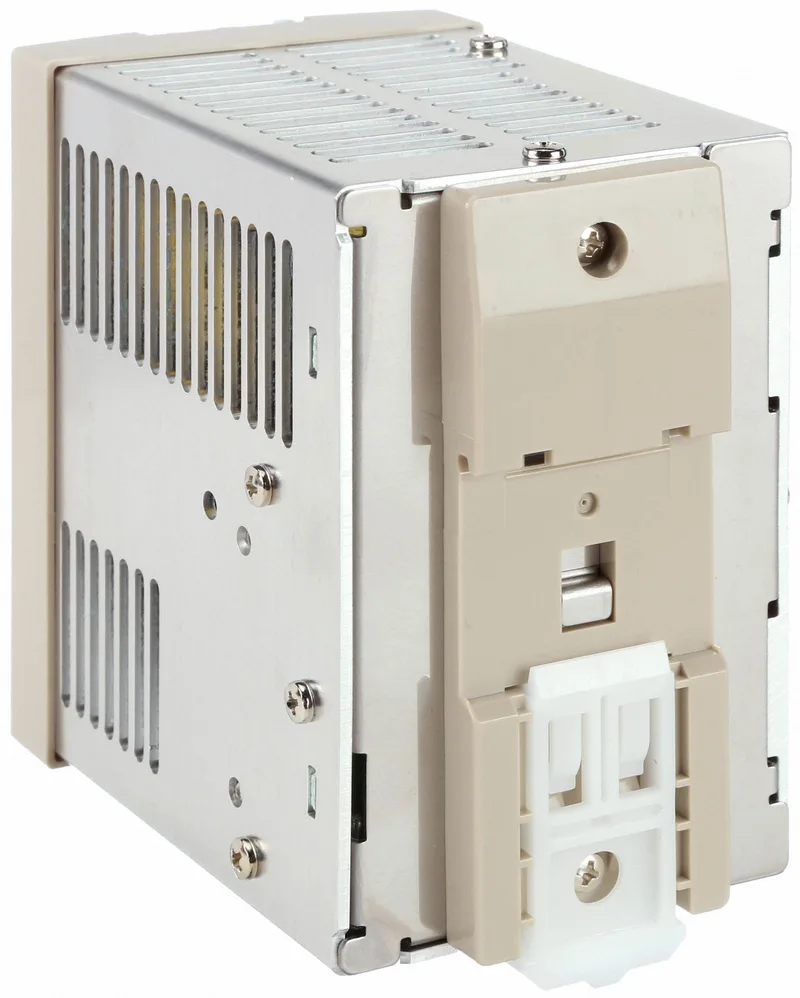

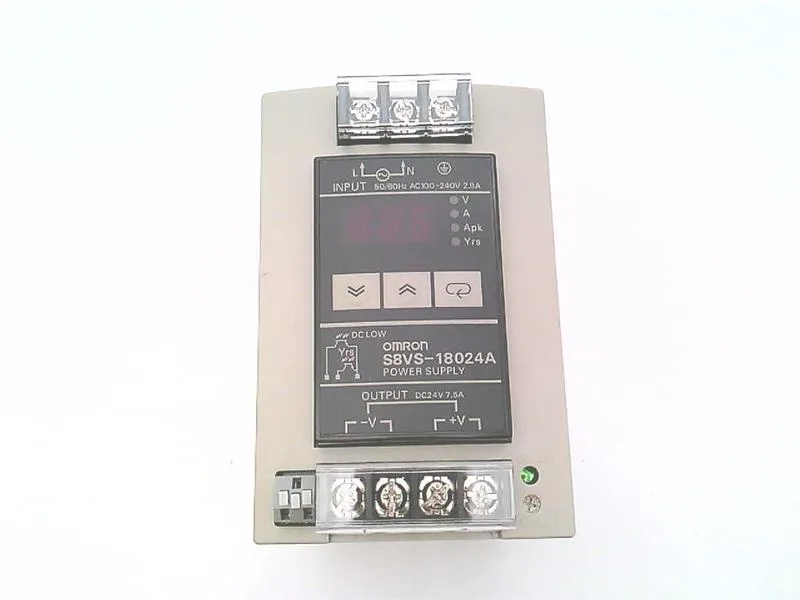

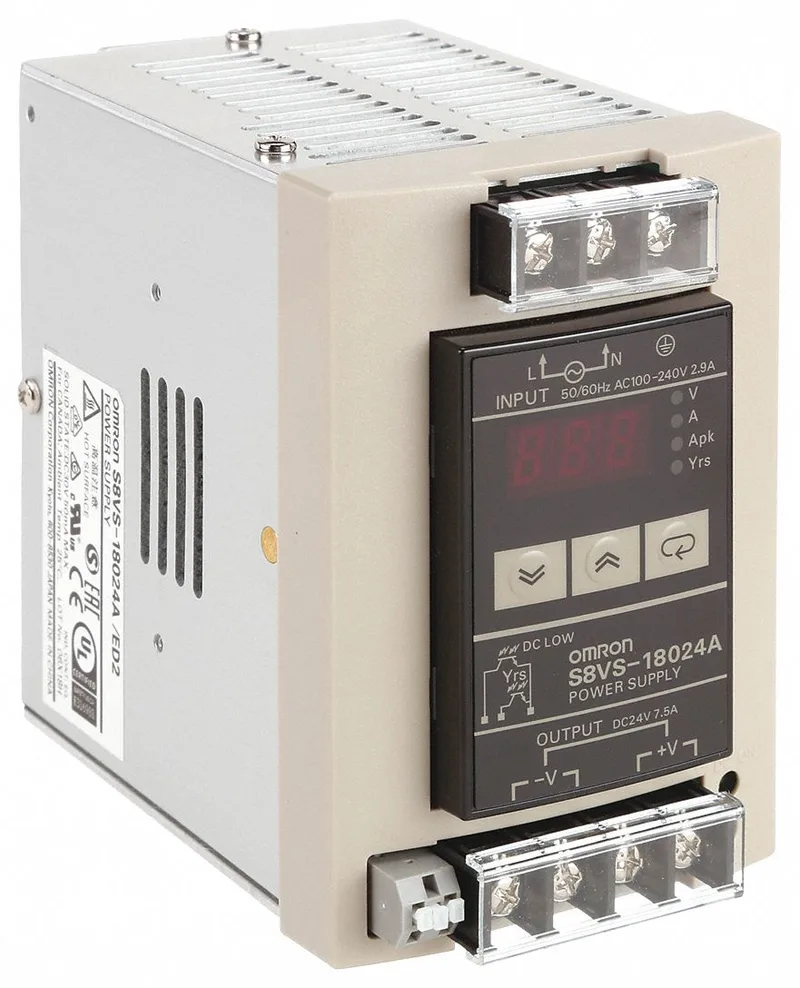

The OMRON S8VS18024A is a single-phase, 180 W switching power supply that delivers a nominal 24 V DC at 7.5 A, sized for industrial control panels and automation enclosures. It mounts on standard DIN rail and accepts 100 to 240 V AC input, 50/60 Hz, with a maximum inrush current of 28 A. The plastic housing includes a 7-segment display and status indicator (green LED) for local monitoring, along with overload, overvoltage, and undervoltage alarm indication. Minimum hold-up time of 70 msec and maximum output noise of 180 mV keep downstream logic stable during line disturbances.
This unit carries UL 508 listing and cUL (CSA C22.2 No. 107.1), EN 62477-1, RCM, and KOSHA S Mark approvals, covering installations in North America, Europe, and Korea. This unit is current production, available for immediate order.
Key Performance Ratings
The 180 W output at 7.5 A covers typical 24 V DC loads for PLCs, sensors, and small drives; the screw terminals accept 14 to 28 AWG wire. Operating temperature range from 14 °F to 185 °F suits unventilated panels and machine cabinets.
