Fit Note
Mounts on an SRT2 bus coupler. The 16 inputs are addressed as a single bank; map them in the C Series configuration tool. Power drawn from the bus at 24 VDC; screw terminals included.

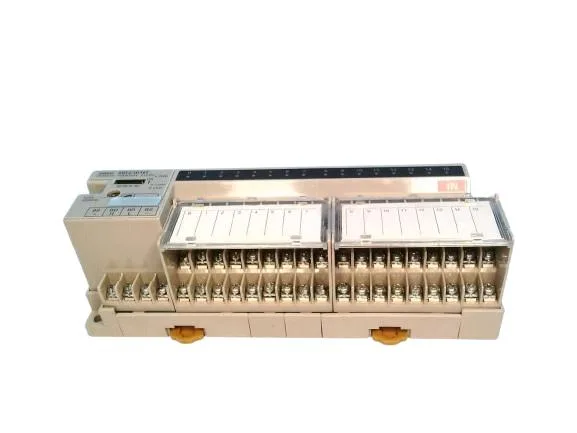

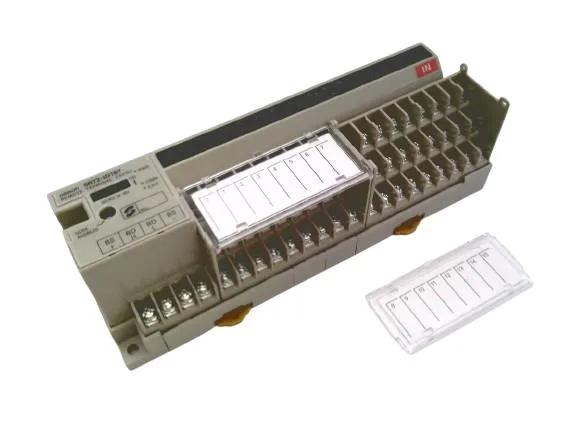

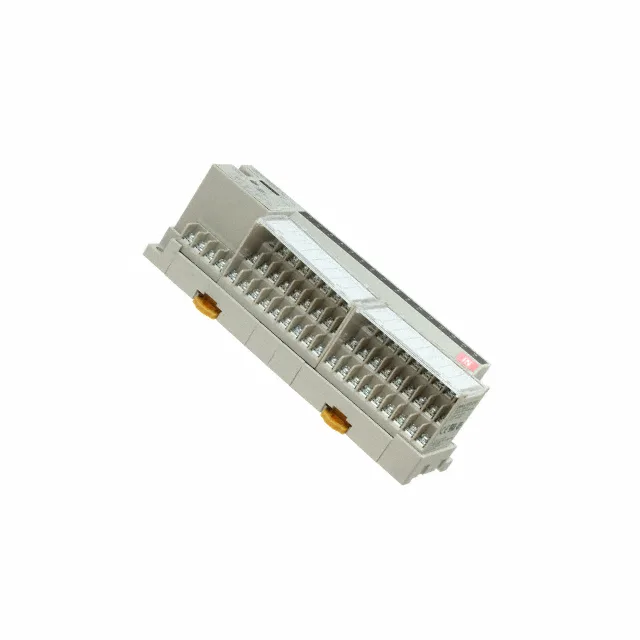

Omron SRT2-ID16T Input Module, 16 Digital Inputs, 24VDC
MPNSRT2-ID16T
Active
Omron SRT2-ID16T, Type Input Module, Series SRT2, 16 Digital Inputs, 24VDC, DIN Rail Mount, Screw Terminal.
$511.93 – $538.88Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | SRT2 |
| For use with / related products | C Series |
Inputs
| Parameter | Value |
|---|---|
| Digital inputs (count and type) | 16 - Digital |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 24VDC |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -10°C~55°C |
Mechanical
| Parameter | Value |
|---|---|
| Termination style | Screw Terminal |
| Mounting type | DIN Rail |
Approvals
| Parameter | Value |
|---|---|
| Agency approvals | CE, CSA, UL |
Other specifications
| Parameter | Value |
|---|---|
| Type | Input Module |
| Weight | 0.662 lb (300.28 g) |
Product details
Frequently asked questions
What is the type and series of SRT2-ID16T?
Type is Input Module; series is SRT2.
What compliance documentation does the SRT2-ID16T have?
The module carries CE, CSA, and UL approvals.
Will the SRT2-ID16T drop into a panel designed for a CP2E-S40DT1-D?
No. The CP2E-S40DT1-D is a PLC CPU with onboard digital I/O (24 inputs, 16 solid-state outputs), while the SRT2-ID16T is a remote input module for the SRT2 bus. They are not electrically or mechanically interchangeable without reconfiguring the entire backplane.
What are the key ratings of the SRT2-ID16T?
16 digital inputs, 24 VDC supply, DIN rail mount, screw terminals, operating temperature -10°C to 55°C.
MPN
SRT2-ID16T
