Omron SRT2-OD08

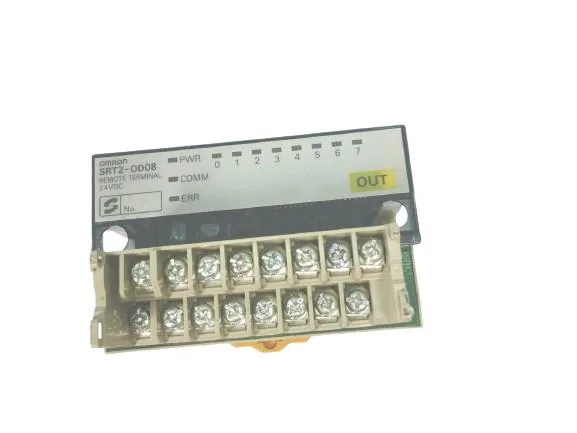

Omron SRT2-OD08 Output Module, 8 Solid State, 24VDC

MPN SRT2-OD08
Active

Omron SRT2 series output module, 8 solid state outputs, 24VDC supply, DIN rail mount, screw terminal termination, CE/CSA/UL approved.

$193.04 – $402.85 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

SRT2-OD08 specifications
ParameterValue
SeriesSRT2
Product typeOutput Module
Supply voltage24 VDC
MountingDIN Rail
Temp operating max55 °C
Temp operating min0 °C
Weight0.176 lb (79.83 g)
PackageBulk

Product details

8 solid-state outputs on DIN rail

The Omron SRT2-OD08 is an output module with 8 solid state outputs, supplied at 24VDC, designed for DIN rail mounting in control panels. Termination is via screw terminals, making it straightforward to wire into existing cabinets without special tooling. It carries CE, CSA, and UL approvals, so it meets the certification requirements for panels shipping into North American and European markets.

The module snaps onto standard DIN rail, occupying a single slot in the SRT2 backplane. Operating temperature range is 0°C to 55°C, which covers most ventilated enclosure environments.

Compatibility with Omron CJ2M

The SRT2-OD08 is listed for use with Omron C Series products. It connects as a remote output node on the SRT2 network, mapping 8 digital output points into the I/O memory.

MPN
SRT2-OD08
