Omron SRT2-OD08-1

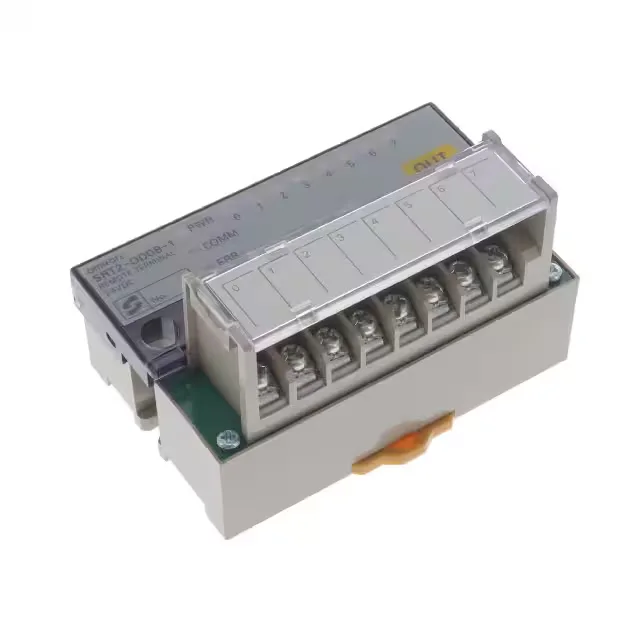

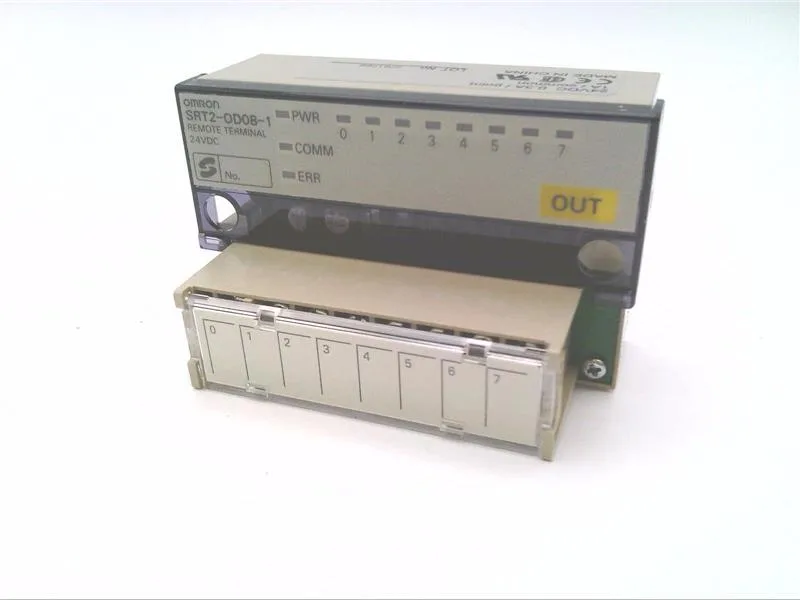

Omron SRT2-OD08-1 Output Module, 8 Solid State, 24 VDC

MPN SRT2-OD08-1
Active

Omron SRT2 series output module, 8 solid-state outputs, 24 VDC supply, screw terminal, DIN rail mount, CE/CSA/UL approved.

$187.02 – $410.83 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

SRT2-OD08-1 specifications
ParameterValue
SeriesSRT2
Product typeOutput Module
Supply voltage24 VDC
MountingDIN Rail
Temp operating max55 °C
Temp operating min0 °C
Weight0.176 lb (79.83 g)
PackageBulk

Product details

8 solid-state outputs at 24 VDC

The Omron SRT2-OD08-1 is an output module with 8 solid-state outputs, each switched at 24 VDC. The solid-state design means no mechanical contacts to wear — suited for high-cycle applications like solenoid banks or indicator arrays where relay life would be a limit. Screw-terminal termination keeps field wiring straightforward: strip, terminate, torque. No special tooling needed for the 24 VDC supply or load wiring.

DIN rail mount, C Series compatible

Rated for 0°C to 55°C ambient, so it lives inside a ventilated enclosure without derating. Listed for use with Omron C Series PLCs. The 8-output density matches well for distributed I/O where you need a few local outputs without pulling a full rack.

MPN
SRT2-OD08-1
