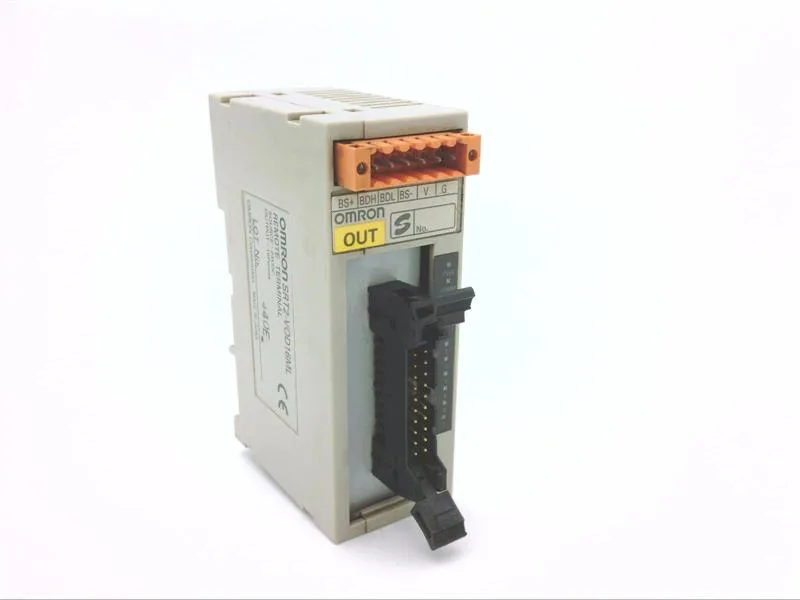

Omron SRT2-VID16ML — Digital Input Modules

Omron SRT2-VID16ML Digital Input Module, 16 Ch, 24VDC

MPNSRT2-VID16ML
Active

Omron SRT2 series, SRT2-VID16ML, Digital Input Module, 16 digital inputs, 24VDC supply, DIN-rail mount, rectangular connector, CE, CSA, UL.

$230.53 – $566.08Ref. price · indicative, final on quote
Omron SRT2-VID16ML datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

SRT2-VID16ML — Identification
ParameterValue
SeriesSRT2
For use with / related productsC Series
SRT2-VID16ML — Inputs
ParameterValue
Digital inputs (count and type)16 - Digital
SRT2-VID16ML — Electrical
ParameterValue
Supply voltage24VDC
SRT2-VID16ML — Environmental
ParameterValue
Operating temperature range-10°C ~ 55°C
SRT2-VID16ML — Mechanical
ParameterValue
Termination styleRectangular Connector
Mounting typeDIN Rail
SRT2-VID16ML — Approvals
ParameterValue
Agency approvalsCE, CSA, UL
SRT2-VID16ML — Other specifications
ParameterValue
TypeInput Module
Weight0.165 lb (74.84 g)

Product details

16 digital inputs at 24 VDC, DIN-rail mount

The Omron SRT2-VID16ML is a 16-channel digital input module from the SRT2 series, designed for 24 VDC control loops. The CE, CSA, and UL marks clear it for panels shipping into North America and Europe.

Active lifecycle, sourced per RFQ

If a second-source is needed, the rectangular connector and 24 VDC supply are the interface constraints to match.

What the connector means for panel wiring

The termination style is a rectangular connector — not a cage clamp or screw terminal. That means the field wiring terminates on a mating plug or header, not directly on the module. The connector pinout and the mating half part number need to be confirmed against the panel harness drawing before the module is specified. The module is part of the C Series ecosystem. The rectangular connector pin assignment follows the C-series pattern.

Frequently asked questions

Does the SRT2-VID16ML require a specific backplane or connector?

It terminates via a rectangular connector, not screw terminals. The mating connector and its pinout are not detailed in the basic listing; the panel wiring harness must be designed to match the C-series interface. Confirm the connector part number against the Omron accessory list before committing the BOM.
