Omron SRT2-VOD08S-1

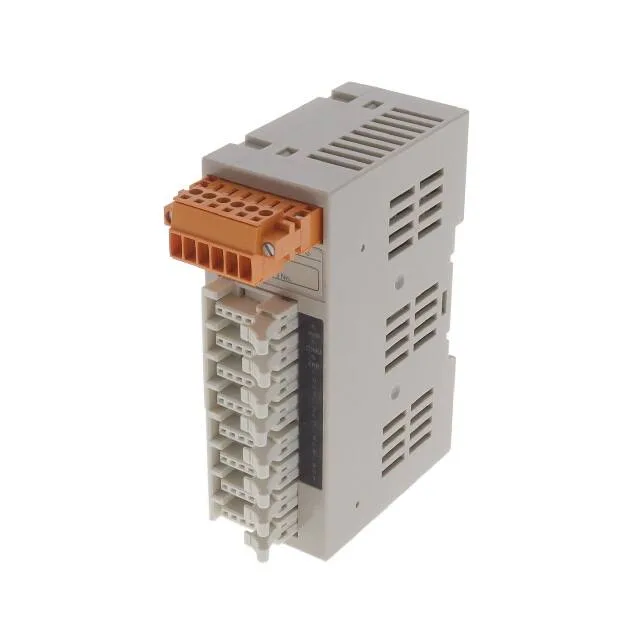

Omron SRT2-VOD08S-1 Output Module, 8 Solid State, 24VDC

MPN SRT2-VOD08S-1
Active

Omron SRT2 Series output module, SRT2-VOD08S-1, 8 solid state outputs, 24 VDC, DIN rail mount, screw terminal, CE/CSA/UL.

$477.14 – $502.25 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

SRT2-VOD08S-1 specifications
ParameterValue
SeriesSRT2
Product typeOutput Module
Supply voltage24 VDC
MountingDIN Rail
Temp operating max55 °C
Temp operating min-10 °C
Weight0.165 lb (74.84 g)
PackageBulk

Product details

8 solid state outputs, 24 VDC, DIN rail

The SRT2-VOD08S-1 is an output module packing eight solid state outputs on a 24 VDC rail, terminated with screw terminals and mounted to DIN rail. Solid state means no contacts to weld or wear — it switches cleaner than a relay bank in a high-cycle application. The CE, CSA, and UL approvals mean it clears the compliance gate for most North American and European builds without a separate agency chase. It's listed for use with the C Series, so if your BOM already carries an Omron C-series CPU or bus coupler, this module mates without a protocol mismatch at the backplane.

Active production, quoted to order

Lifecycle status is active — Omron still builds this module, so there's no last-time-buy scramble or surplus hunt. The screw terminal strip is the same pitch as other SRT2 slices, so panel wiring stays consistent across the rack. No special tooling needed beyond a standard slotted driver.

Field swap without rewiring the whole column

If an output channel goes down on a line and you've got a spare SRT2-VOD08S-1 on the van, swap it in — same DIN rail footprint, same screw terminal layout, same 24 VDC supply. No need to pull the bus coupler or re-terminate the entire slice group. Solid state outputs pull less current from the 24 VDC rail than an equivalent relay module, so you're not chasing a sagging supply after the swap. The 8-output count matches most mid-density machine zones — one module per station, clean separation.

MPN
SRT2-VOD08S-1
