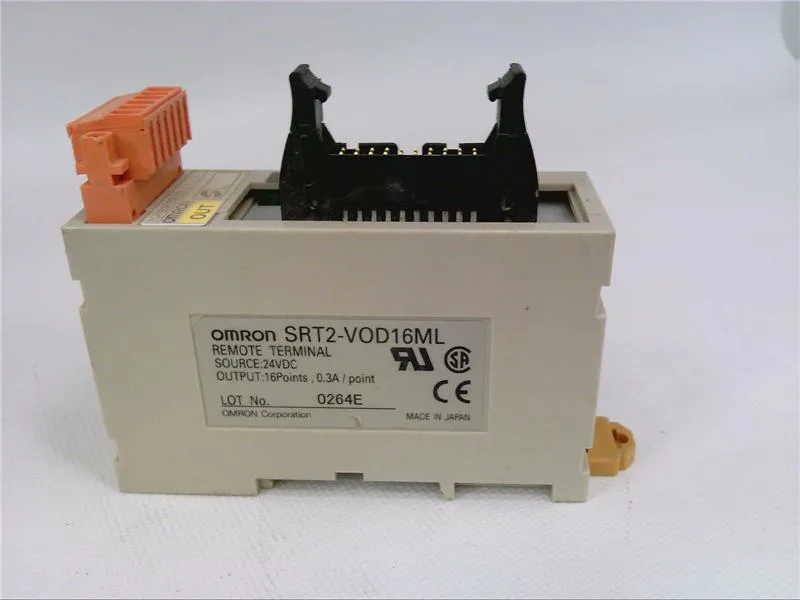

Omron SRT2 series, SRT2-VOD16ML output module, 16 solid-state outputs, 24VDC supply, DIN-rail mount, rectangular connector termination.
| Parameter | Value |
|---|---|
| Series | SRT2 |
| Type | Output Module |
| Compatible with | C Series |
| Parameter | Value |
|---|---|
| Outputs and output technology | 16 - Solid State |
| Parameter | Value |
|---|---|
| Operating temperature range | -10°C~55°C |
| Parameter | Value |
|---|---|
| Mounting type | DIN Rail |
| Termination style | Rectangular Connector |
| Parameter | Value |
|---|---|
| Approvals / certifications | CE, CSA, UL |
| Parameter | Value |
|---|---|
| Weight | 0.165 lb (74.84 g) |
| Supply voltage | 24VDC |
The Omron SRT2-VOD16ML is a 16-channel solid-state output module in the SRT2 series, running on a 24VDC supply.
Carries CE, CSA, and UL approvals, so it meets North American and European regulatory requirements for industrial control panels. Rated for -10°C to 55°C ambient, which covers most cabinet environments without forced cooling.
Yes, the SRT2-VOD16ML is listed for use with Omron C Series products. It connects via a rectangular connector and mounts on a DIN rail, matching the form factor of C Series remote I/O racks.
