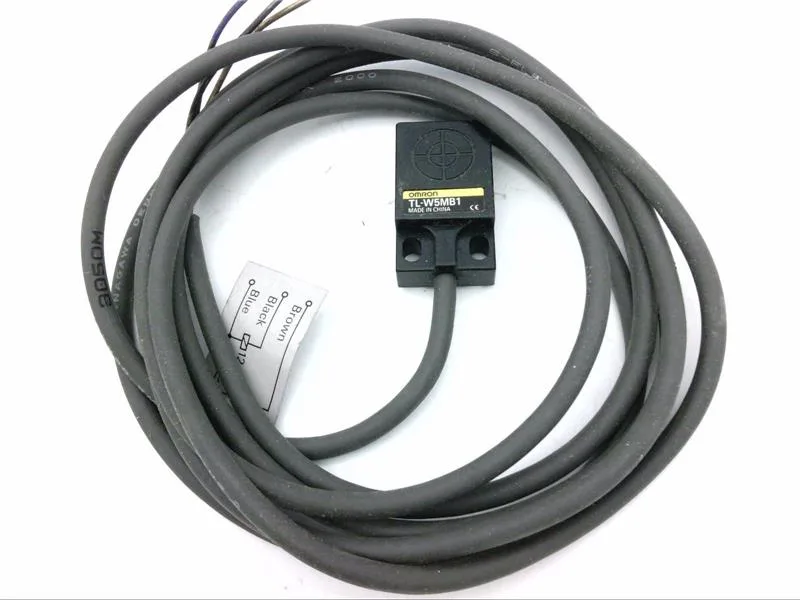

Omron TLW5MB1
MPNTLW5MB1
Inductive Sensor PNP, NO 500Hz 30V 10mA 5mm Pre-Wired IP67 TL-W
$83.20 – $134.45Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Switching frequency | 500 Hz |
| Parameter | Value |
|---|---|
| Series | TL-W |
| Parameter | Value |
|---|---|
| Width | 18 mm |
| Height | 10 mm |
| Length | 30.5 mm |
| Load current | 100 mA |
| Mounting | Through Hole |
| Housing material | ABS |
| Termination type | Pre-Wired |
| Construction form | Rectangular |
| IP rating | IP67 |
| Current consumption | 10 mA |
| Sensing distance max. | 5 mm |
| Operating voltage max. | 30 V |
| Operating voltage min. | 10 V |
| Operating temperature max. | 70 °C |
| Operating temperature min. | -25 °C |
| Inductive sensor output type | PNP, NO |
MPN
TLW5MB1
