The XW2B-20J6-1B is a 20-position Type Position Control Terminal Block with screw connections, rated for 1 A and 0-55 °C ambient. It is a legacy OMRON part commonly used in position feedback wiring for stepper/servo drives or encoder and limit-switch terminations. The 1 A rating keeps it at signal levels — not for motor power or solenoid loads. Screw terminals make field replacement straightforward without special tooling.

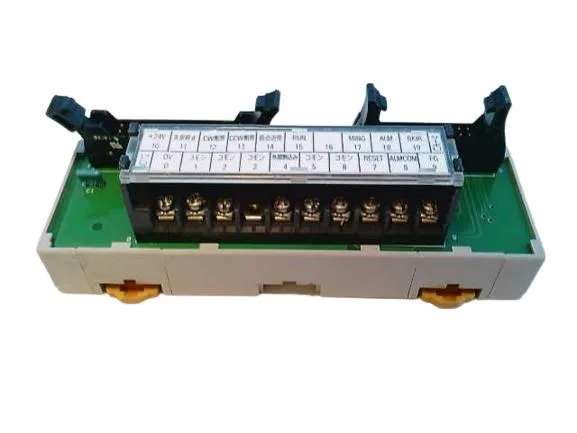

OMRON XW2B-20J6-1B Position Control Terminal Block, 20 Pos
MPNXW2B-20J6-1B
OMRON XW2B-20J6-1B, Type Position Control Terminal Block, 20 positions, screw connection, 1 A rated, 0-55 °C.
$114.81Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Position Control Terminal Block |
| Model | XW2B-20J6-1B |
| Weight | 0,12 kg |
| Condition | Used |
| Dimensions | 135 x 45 x 46 mm |
| Shelf no. | 230220 |
| Connection | Terminal Blocks – Screw Connection |
| Current | 1 A |
| No. of positions | 20 |
| Operating temperature | 0 … 55 °C |
| Insulation resistance | 5 MΩ |
Product details
Frequently asked questions
What is the listed type of XW2B-20J6-1B?
It is a Type Position Control Terminal Block.
What is the rated current?
1 A.
MPN
XW2B-20J6-1B
